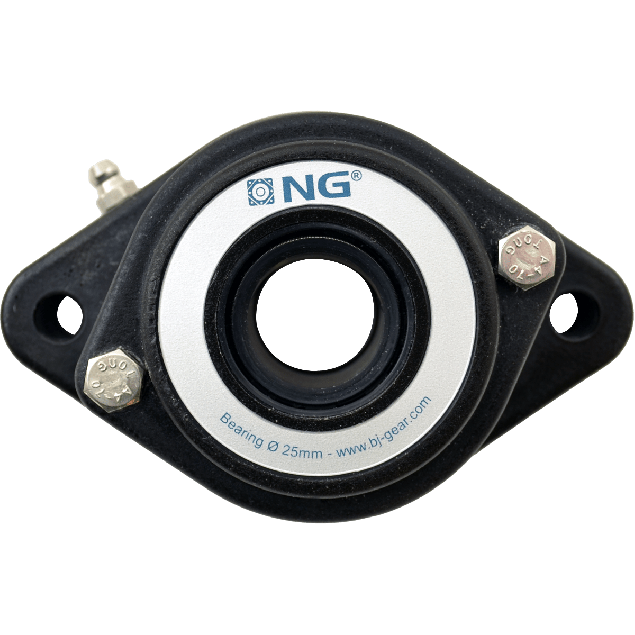

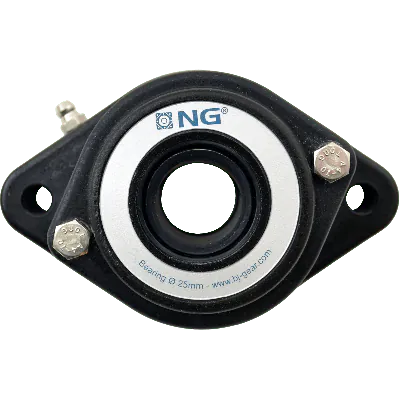

NG waterproof flange bearing F2 Ø25, 2-bolt, open cover

NG25F21

The NG flange bearing F2 Ø25 with open cover, is a compact and highly efficient solution for your bearing needs. Designed with precision and built to last, this flange bearing offers performance in a wide range of applications

Specifications

Product description

Guide

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment: 31-03-2025

Accessories

Bolt size M6x1
Grease nipple 45°

NG waterproof grease nipple 45 degrees, stainless steel KI820015

€3.42

excl. VAT

Bolt size M6x1
Grease nipple 90°

NG waterproof grease nipple 90 degrees, stainless steel KI820020

€4.26

excl. VAT

Grease nipple None
Shaft size (mm) Ø25
Mounting Eccentric

NG waterproof insert bearing PE Ø25, stainless steel KI802550

€28.00

excl. VAT

More Information

Grease nipple

Straight

Hole distance (mm)

Shaft size (mm)

Ø25

Cover

Open

Sealing

Nitrile rubber (NBR)

Bearing material

Stainless steel

Model

Mounting

Eccentric

Housing type

2-bolt flange bearing

House material

Polyurethane

Color

Black

IP classification

IP 66/67

Description

Key features:

Compact and easy to clean: The flange housing features rounded corners and smooth surfaces, making it effortless to clean and maintain hygiene standards.
Spherical PE lifetime lubricated ball bearing: Equipped with a ball bearing, this flange housing ensures smooth operation and requires no maintenance.
Excentric locking collar: The bearing is secured with an excentric locking collar, preventing any unwanted movement during operation.
IP66/67 rated: The flange housing is designed to withstand harsh environments and is certified IP66/67, ensuring resistance to dust and water ingress.

Materials:

Stainless steel grease nipple: The inclusion of a stainless steel grease nipple enables optimal food-grade grease filling and prevents condensation within the bearing housing.
PUR flange housing: The flange housing is constructed with PUR (Polyurethane).
