Key features:

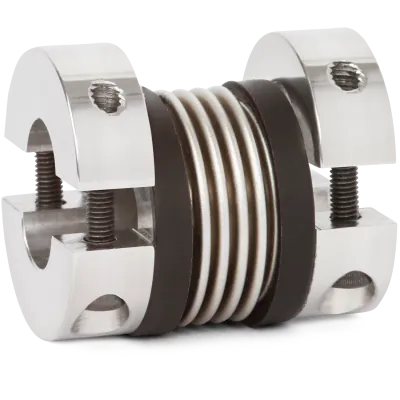

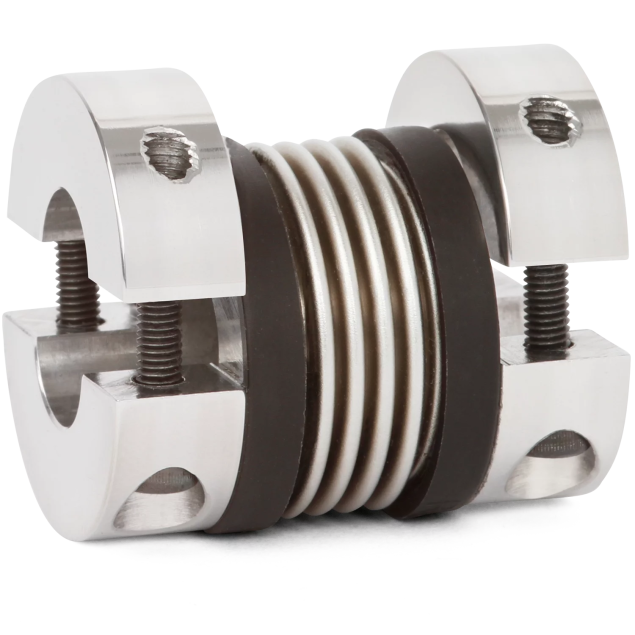

• Lateral mounting: The MKH size 100 coupling offers the flexibility to be mounted laterally, allowing for versatile installation in tight spaces or specific orientations.
• Easy mounting and dismounting: The fully split clamping hubs enable quick and hassle-free mounting and dismounting, saving valuable time during installation or maintenance.
• Lightweight and low moment of inertia: Constructed with lightweight materials, this coupling ensures minimal added weight and low moment of inertia, contributing to improved system dynamics and responsiveness.

Specifications:

• Temperature range: With a wide operating temperature range of -30 °C to +100 °C (-22 °F to +212 °F).

Design and materials:

• Bellows material: The bellow is crafted from high-grade stainless steel, ensuring excellent durability, corrosion resistance, and long-term reliability.
• Hub material: The clamping hubs are made from lightweight yet robust aluminum, striking a balance between strength and weight.

Bore specifications:

• Bore D1: Ø19mm H7
• Bore D2: Ø19mm H7
