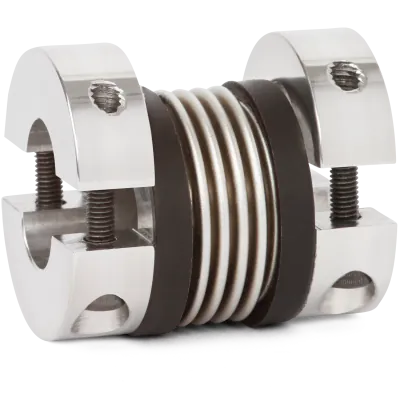

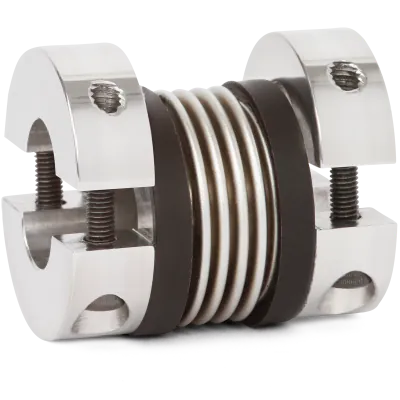

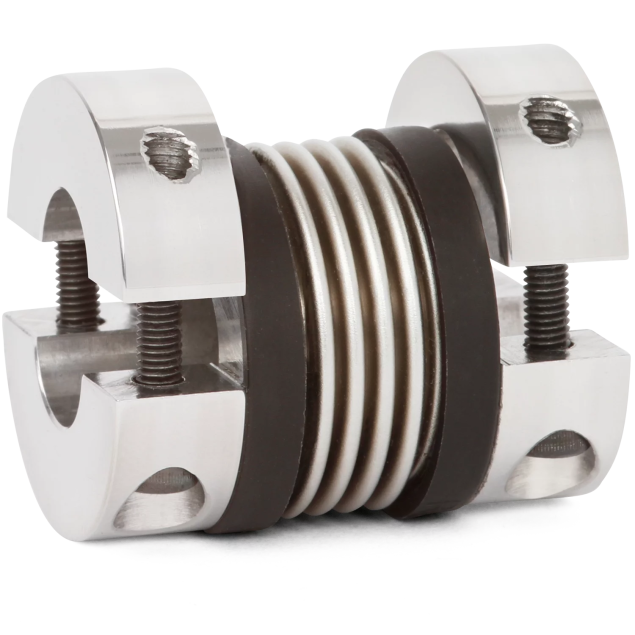

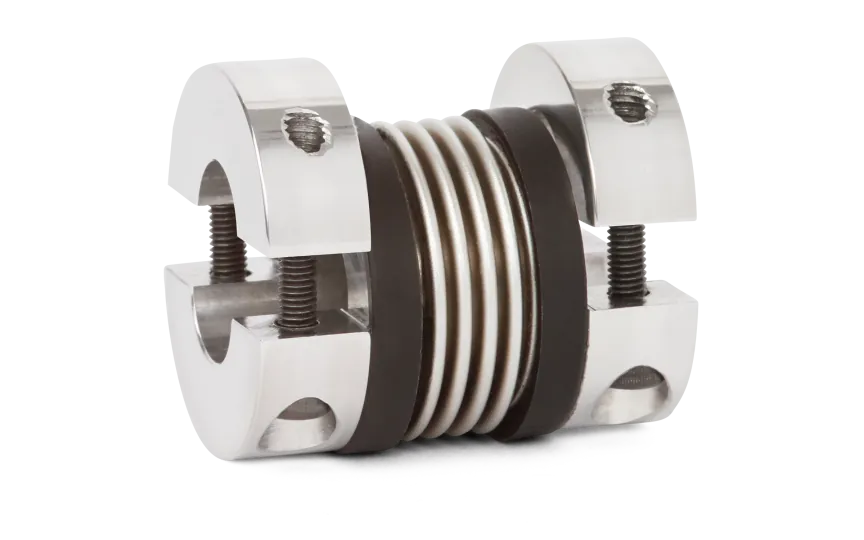

Key features:

• Lateral mounting: The coupling is designed to mount laterally, providing flexibility in installation and allowing for space-saving arrangements.
• Easy mounting and dismounting: The fully split clamping hubs with two screws in each facilitate quick and hassle-free mounting and dismounting, saving valuable time during assembly and maintenance.
• Lightweight and low moment of inertia: The coupling is constructed using lightweight aluminium hubs and a high-grade stainless steel bellows, ensuring minimal added weight and a low moment of inertia for enhanced dynamic performance.

Specifications:

• Temperature range: -30 °C to +100 °C (-22 °F to +212 °F)

Design and materials:

• Fully split clamping hubs: The coupling features two fully split clamping hubs, allowing for easy installation and removal without the need for complete disassembly. The clamping halves can be radially removed in one direction, simplifying maintenance procedures.
• Stainless steel bellows: The bellows component is manufactured from high-grade stainless steel, ensuring exceptional durability, corrosion resistance, and the ability to withstand demanding operating conditions.
• Aluminium hubs: The hubs are crafted from lightweight aluminium, combining strength and rigidity with reduced weight for optimized performance.

Bore specifications:

• Bore D1: Ø19mm H7
• Bore D2: Ø15mm H7
