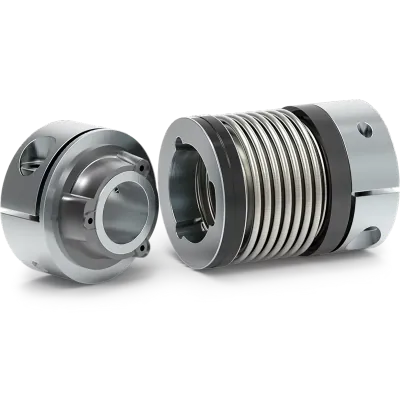

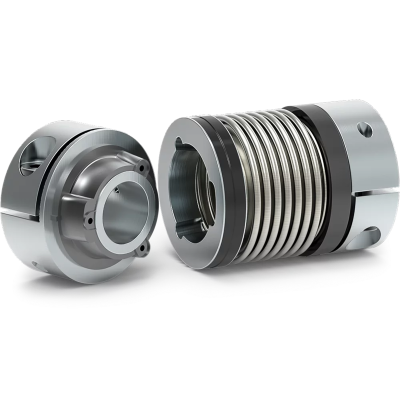

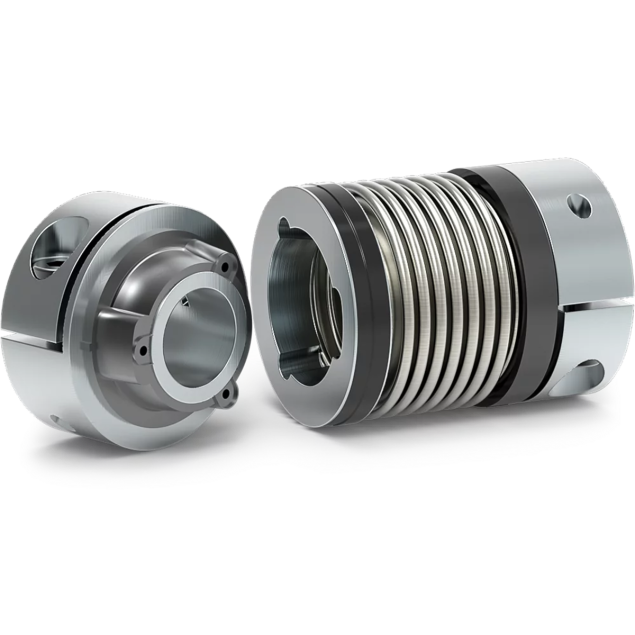

R+W MK5 15 34 5 6 miniature metal bellow coupling, stainless steel, steel and plastic
HV3020321807The MK5 size 15 miniature metal bellows coupling with clamping hub is a high-quality coupling designed for various industrial applications. With its easy installation and removal, electrically and thermally isolating features, and absolutely backlash-free assembly, this coupling offers performance and reliability.
Specifications
Product description
Downloads
€81.00
Made to order
Expected shipment: 14-04-2025
More Information
Material
Stainless steel, steel and plastic
Length (mm)
34
Max. moment (Nm)
1.5
Manufacturer
R+W
Coupling size
15
Outer diameter (mm)
Ø19
Bore D1
Ø5mm H7
Bore D2
Ø6mm H7
Description
Key features:
- Easy installation and removal for quick setup and maintenance
- Electrically and thermally isolating properties for enhanced safety
- Absolutely backlash-free assembly ensures precise operation
Specifications:
- Temperature range: -30 °C to +100 °C (-22 °F to +212 °F)
Design and materials:
- Bellow: High-grade stainless steel construction for durability and corrosion resistance
- Hubs: Aluminium construction provides strength and lightweight characteristics
- Expanding shaft and tapered male segment: High-strength plastic for reliable performance
Bore specifications:
- Bore D1: Ø5mm H7
- Bore D2: Ø6mm H7
Downloads
BK+MK installation and operating instructions
BK+MK installation and operating instructions.pdf
Download file
