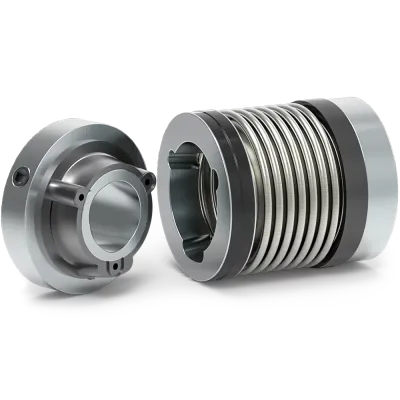

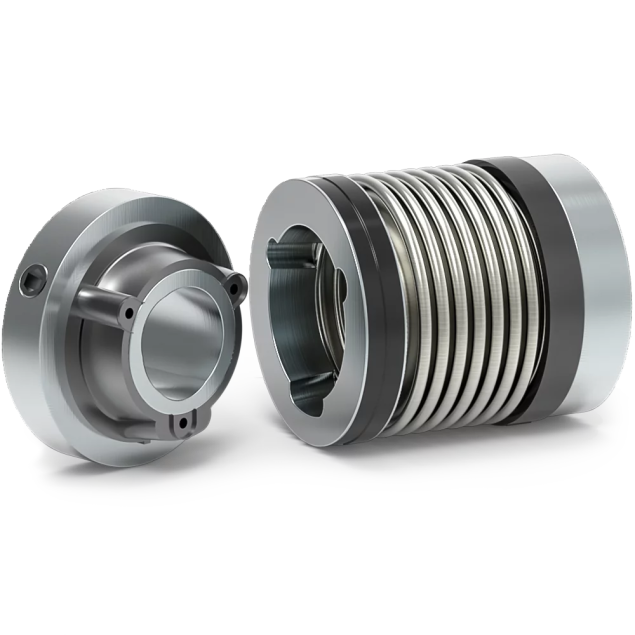

Description
Key features:
- Easy installation and removal for convenient setup and maintenance
- Electrically and thermally isolating to prevent interference or heat transfer
- Absolutely backlash-free assembly for precise and accurate operation
Specifications:
- Clamping hub: One clamping hub with one clamping screw
- Expanding shaft: Tapered clamping element for secure connection
- Bellow material: High-grade stainless steel for durability and corrosion resistance
- Hub material: Aluminum for a lightweight yet sturdy construction
- Expanding shaft and Tapered Male Segment: High-strength plastic for optimal performance
Design and materials:
- Bellow: High-grade stainless steel construction ensures durability and resistance to corrosion.
- Hubs: Made from aluminum for a lightweight design without compromising strength.
- Expanding shaft and tapered male segment: Crafted from high-strength plastic to provide excellent performance under various conditions.
Bore specifications:
- Bore D1: Ø21mm H7
- Bore D2: Ø10mm H7
Specifications
Material
Stainless steel, aluminum and plastic
Length (mm)
39
Max. moment (Nm)
4.5
Manufacturer
R+W
Coupling size
45
Outer diameter (mm)
Ø32
Bore D1
Ø21mm H7
Bore D2
Ø10mm H7
Foreign trade
HS-Code
84836020
ERP net weight (Kg)
0.08
Country of origin
DEU
