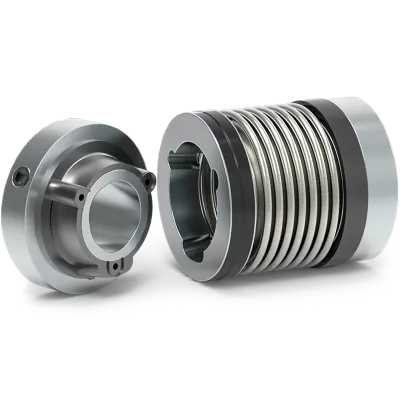

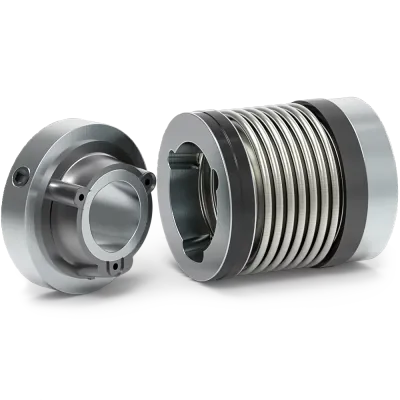

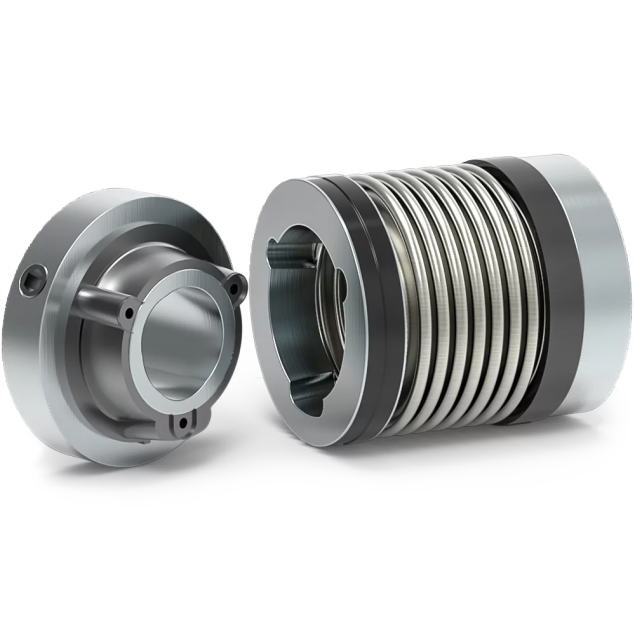

R+W MK4 45 39 10 10 miniature bellow coupling, stainless steel, steel and plastic
HV3020321802The MK4 size 45 miniature bellows coupling with radial set screws is a versatile and reliable coupling solution designed for various industrial applications. With its key features of easy installation and removal, electrically and thermally isolating properties, and absolute backlash-free assembly, this coupling ensures efficient and precise power transmission.
Made to order
Expected shipment: 28-02-2025
More Information
Description

Key features:
- Easy installation and removal: The coupling's design allows for quick and hassle-free installation and removal, minimizing downtime and increasing productivity.
- Electrically and thermally isolating: The coupling effectively isolates electrical and thermal energy, preventing any unwanted interference and ensuring reliable performance in sensitive applications.
- Absolutely backlash-free assembly: The radial set screws ensure a secure and precise connection, eliminating any backlash and maintaining accurate rotational motion.
Specifications:
- Temperature range: -30 °C to +100 °C (-22 °F to +212 °F)
Design and materials:
- Bellow: The bellows are constructed from high-grade stainless steel, providing exceptional durability and resistance to corrosion.
- Hubs: The hubs are made from lightweight aluminum, offering a combination of strength and reduced weight for optimal performance.
- Expanding shaft and tapered male segment: These components are manufactured using high-strength plastic, ensuring reliable power transmission while maintaining flexibility.
Bore specifications:
- Bore D1: Ø10mm H7
- Bore D2: Ø10mm H7
