Key Features:

• Frictional connection: Provides a secure and reliable connection, ensuring optimal power transmission.
• Highly dynamic applications: Designed to handle high-speed and highly dynamic motion, making it ideal for applications requiring quick response times.
• Low moment of inertia: Minimizes the energy required for acceleration and deceleration, resulting in improved overall system efficiency.

Specifications:

• Temperature Range: Operating Temperature: -30 °C to +100 °C (-22 °F to +212 °F)

Design and Materials:

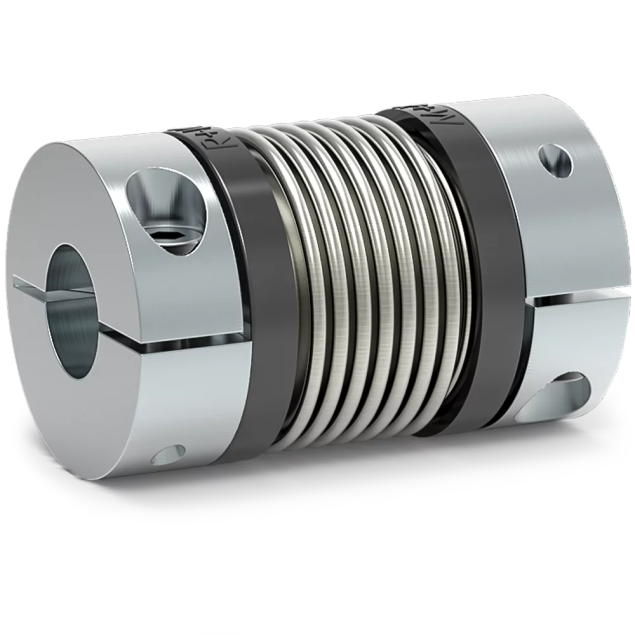

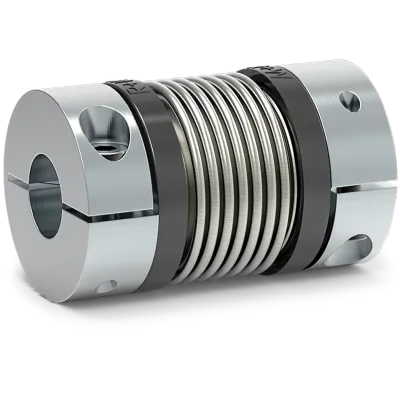

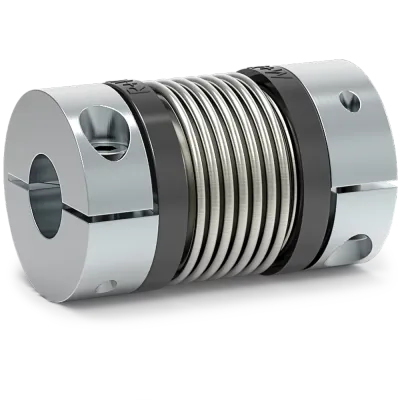

• Design: Consists of two clamping hubs concentrically mounted to a flexible bellows, ensuring excellent torsional stiffness and misalignment compensation.
• Flexible bellows: Made from high-grade stainless steel, the bellows provide flexibility to accommodate misalignment while maintaining torsional stiffness.
• Aluminum hubs: The clamping hubs are constructed from aluminum, offering a lightweight design without compromising on strength and durability.

Bore Specifications:

• Bore D1: Ø6mm H7
• Bore D2: Ø10mm H7
