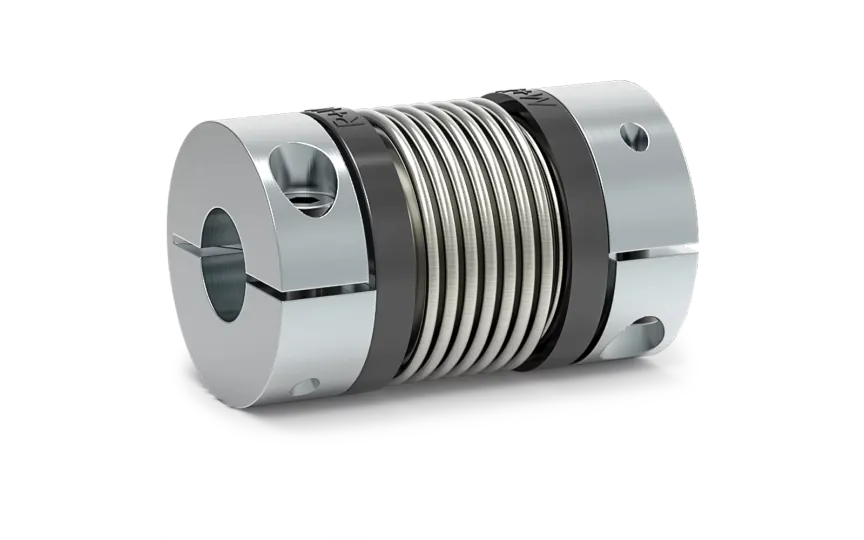

R+W MK2 15 30 6 6 miniature bellow coupling, stainless steel and aluminium
HV3020321811The MK2 size 30 miniature bellows coupling with clamping hub is a high-quality coupling designed for highly dynamic applications with a low moment of inertia. It offers a frictional connection that ensures efficient power transmission and precise motion control. With its compact size and reliable performance, this coupling is suitable for a wide range of industrial and automation applications.
Made to order
Expected shipment: 31-01-2025
More Information
Description
Key features:
- Frictional connection: Provides efficient power transmission and prevents slippage, ensuring reliable operation.
- Highly dynamic applications: Suitable for demanding applications that require rapid and precise motion control.
- Low moment of inertia: Minimizes energy loss and enhances overall system responsiveness.
Specifications:
- Temperature range: -30 °C to +100 °C (-22 °F to +212 °F)
Design and Materials:
- The coupling features a two-clamping hub design, with the clamping hubs concentrically mounted to a flexible bellows.
- The bellows is made from high-grade stainless steel, providing excellent durability and resistance to corrosion.
- The clamping hubs are constructed from aluminum, offering a balance between strength and weight.
Bore Specifications:
- Bore D1: Ø6mm H7
- Bore D2: Ø6mm H7
