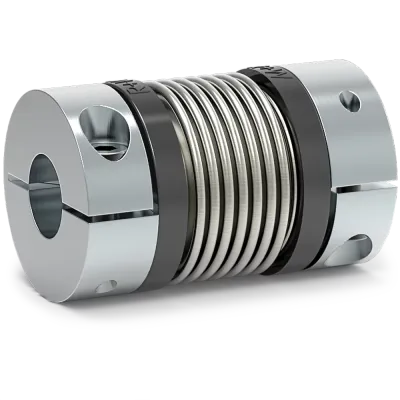

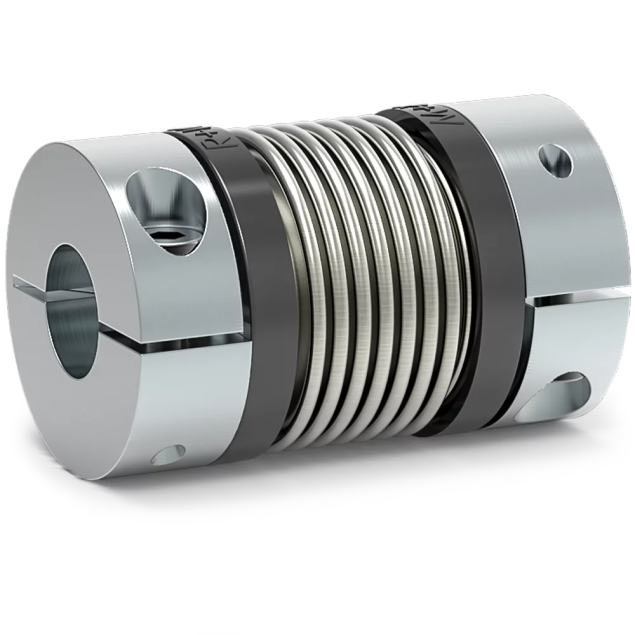

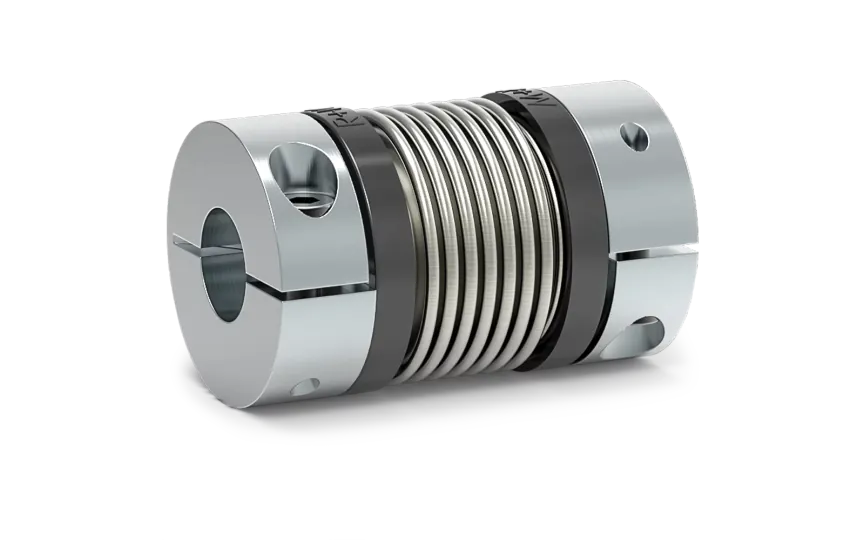

R+W MK2 100 60 22 12 miniature bellow coupling, stainless steel and aluminium
HV3020321801The MK2 size 100 miniature bellows coupling with clamping hub is a high-quality and reliable coupling designed for highly dynamic applications. With its frictional connection and low moment of inertia, it ensures efficient power transmission and precise control in demanding industrial environments.
Specifications
Product description
Downloads
€104.16
Made to order
Expected shipment: 31-01-2025
More Information
Material
Stainless steel and aluminium
Length (mm)
60
Max. moment (Nm)
10
Manufacturer
R+W
Coupling size
100
Outer diameter (mm)
Ø40
Bore D1
Ø22mm H7
Bore D2
Ø12mm H7
Description
Key features:
- Frictional connection for optimal power transmission
- Suitable for highly dynamic applications
- Low moment of inertia for precise control
- Robust and durable construction for long-lasting performance
Specifications:
- Temperature Range: -30 °C to +100 °C (-22 °F to +212 °F)
- Material: Bellows made from high-grade stainless steel, hubs made from aluminum
Design and materials:
- Two clamping hubs concentrically mounted to a flexible bellows
- Bellows made from high-grade stainless steel for excellent durability and resistance to corrosion
- Hubs made from aluminum for lightweight and sturdy construction
Bore specifications:
- Bore D1: Ø22mm H7
- Bore D2: Ø12mm H7
Downloads
BK+MK installation and operating instructions
BK+MK installation and operating instructions.pdf
Download file
