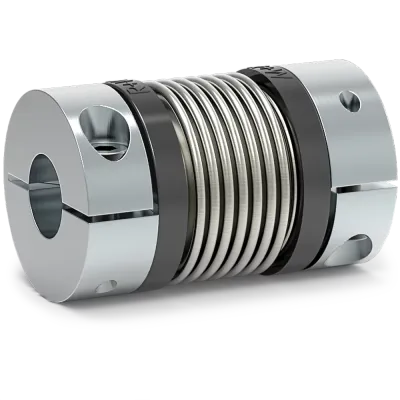

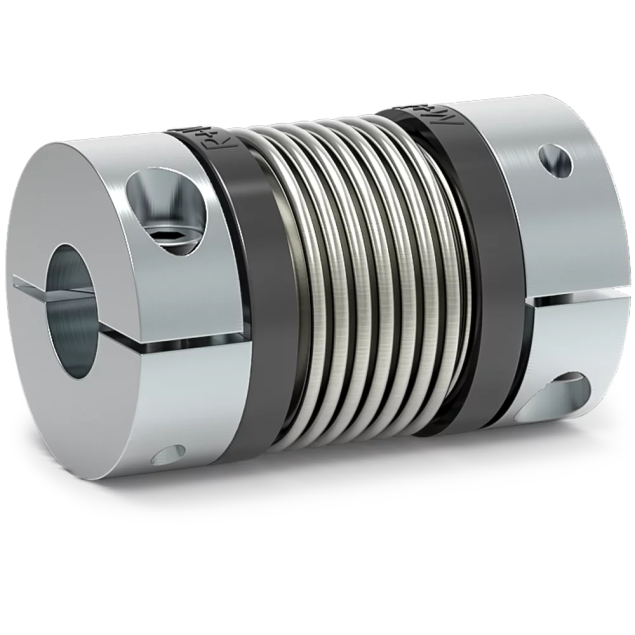

Key features:

• Frictional connection: Ensures a secure and reliable connection between shafts, even under high-speed and high-torque conditions.
• Highly dynamic applications: Ideal for applications that involve rapid acceleration, deceleration, and frequent reversals of motion.
• Low moment of inertia: Enables fast response and precise positioning, minimizing energy loss and optimizing overall system performance.

Specifications:

• Temperature range: -30 °C to +100 °C (-22 °F to +212 °F)
• Material: High-grade stainless steel bellows and aluminum clamping hubs

Design and materials:

• Concentric mounting: The two clamping hubs are mounted concentrically, ensuring accurate alignment and efficient torque transmission.
• Bellows: The flexible bellows is made from high-grade stainless steel, providing excellent flexibility, torsional stiffness, and resistance to corrosion.
• Clamping hubs: The clamping hubs are constructed from lightweight and durable aluminum, offering strength and reliability while minimizing the overall weight of the coupling.

Bore specifications:

• Bore D1: Ø6mm H7
• Bore D2: Ø4mm H7
