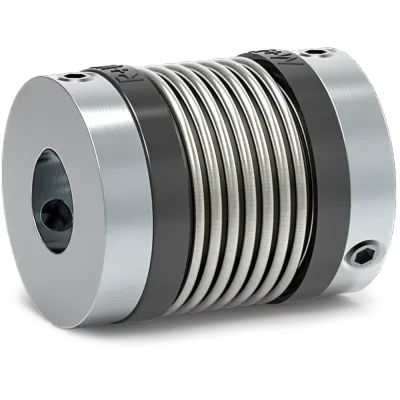

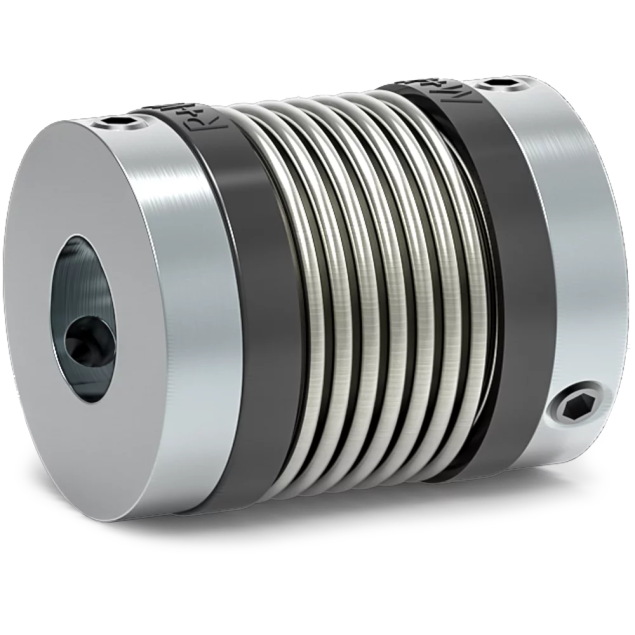

R+W MK1 5 20 2 2 miniature bellow coupling, stainless steel and aluminium
HV3020321800The MK1 size 5 miniature bellows coupling with radial set screws is a high-quality coupling designed to provide efficient power transmission while offering a range of desirable features. It is suitable for various industrial applications that require a compact and reliable coupling solution. With its integral dismounting groove and economical design, this coupling eliminates the need for flats on shafts, making installation and removal hassle-free.
Made to order
Expected shipment: 31-01-2025
More Information
Description
Key features:
- Integral dismounting groove eliminates the need for flats on shafts
- Economical design for cost-effective solutions
- Low Moment of Inertia: Enables rapid acceleration and deceleration, enhancing overall system responsiveness and efficiency.
Specifications:
- Speed: Supports speeds up to 20,000 RPM; over 20,000 RPM with finely balanced version
- Temperature range: Operating temperature ranges from -30 °C to +100 °C (-22 °F to +212 °F)
Design and materials:
- Design: Two hubs with radial set screws concentrically mounted to flexible bellows
- Bellows: Made from high-grade stainless steel, ensuring durability and resistance to corrosion
- Hubs: Constructed from aluminum, providing a lightweight yet robust coupling
Bore specifications:
- Bore D1: Ø2mm H7
- Bore D2: Ø2mm H7
