Key features:

• Integral dismounting groove: The coupling features an integral dismounting groove that eliminates the need for flats on shafts, simplifying the installation and disassembly process.
• Economical design: This coupling offers an economical design without compromising on performance, making it a cost-effective solution for various applications.
• Low Moment of Inertia: Enables rapid acceleration and deceleration, enhancing overall system responsiveness and efficiency.

Specifications:

• Maximum speed: Capable of operating at speeds up to 20,000 RPM. The finely balanced version can even handle speeds over 20,000 RPM.
• Temperature range: The coupling is designed to withstand temperatures ranging from -30 °C to +100 °C (-22 °F to +212 °F), ensuring reliable performance in various environments.

Design and materials:

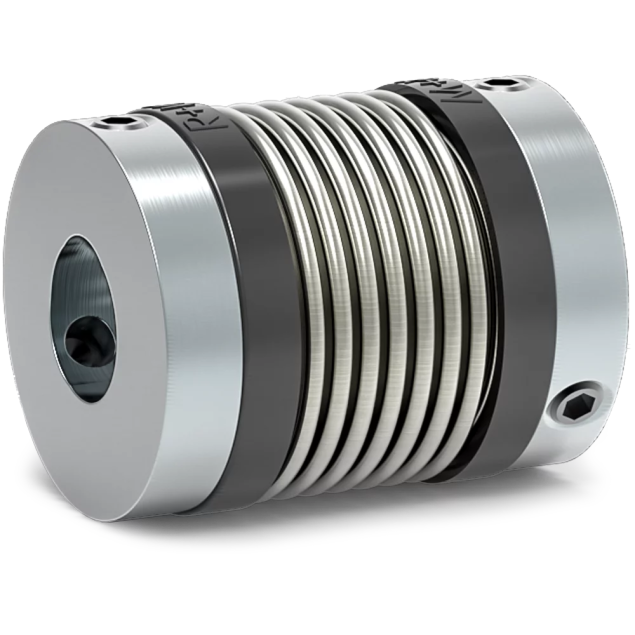

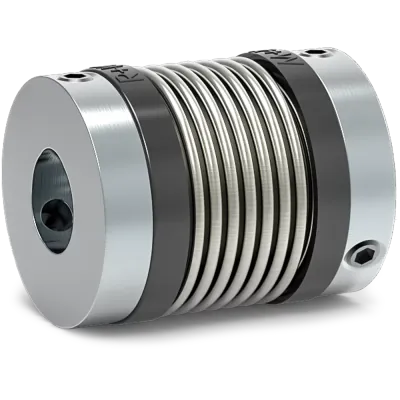

• Design: Two hubs with radial set screws concentrically mounted to a flexible bellows.
• Bellows: The flexible bellows of the coupling are constructed from high-grade stainless steel, providing excellent durability, resilience, and resistance to corrosion.
• Hubs: The hubs are made from aluminum, combining lightweight construction with enhanced strength and reliability.

Bore specifications:

• Bore D1: Ø10mm H7
• Bore D2: Ø10mm H7
