Key features:

• Integral dismounting groove: The coupling is equipped with an integral dismounting groove, eliminating the need for flats on shafts and simplifying installation and removal processes.
• Economical design: The MK1 size 100 coupling offers an economical design without compromising on quality, making it a cost-effective choice for a wide range of applications.
• Low Moment of Inertia: Enables rapid acceleration and deceleration, enhancing overall system responsiveness and efficiency.

Specifications:

• Speed range: The coupling is suitable for speeds up to 20,000 RPM, and for speeds exceeding 20,000 RPM, a finely balanced version is available.
• Temperature range: It can operate effectively in temperatures ranging from -30 °C to +100 °C (-22 °F to +212 °F).

Design and materials:

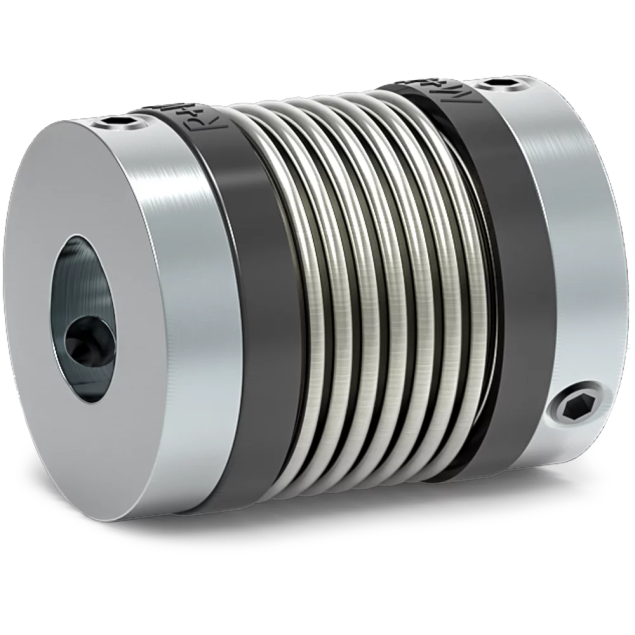

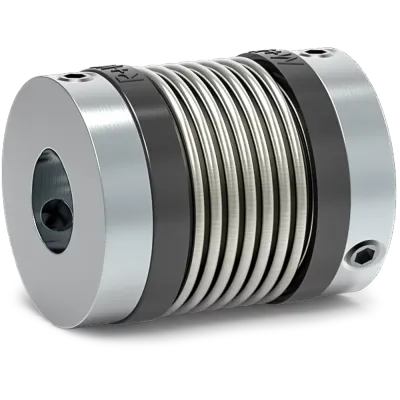

• Design: Two hubs with radial set screws concentrically mounted to a flexible bellows.
• Bellows: The bellows of the coupling is constructed from high-grade stainless steel, ensuring durability and resistance to corrosion.
• Hubs: The hubs are made from lightweight yet robust aluminum, providing strength and reliability while minimizing weight.

Bore Specifications:

• Bore D1: Ø10mm H7
• Bore D2: Ø10mm H7
