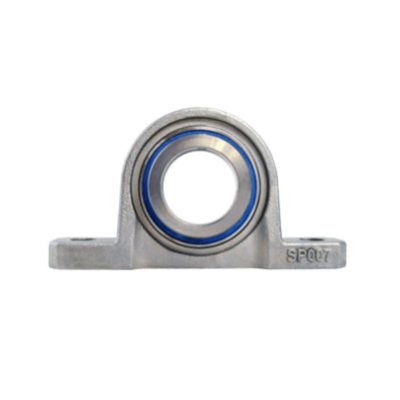

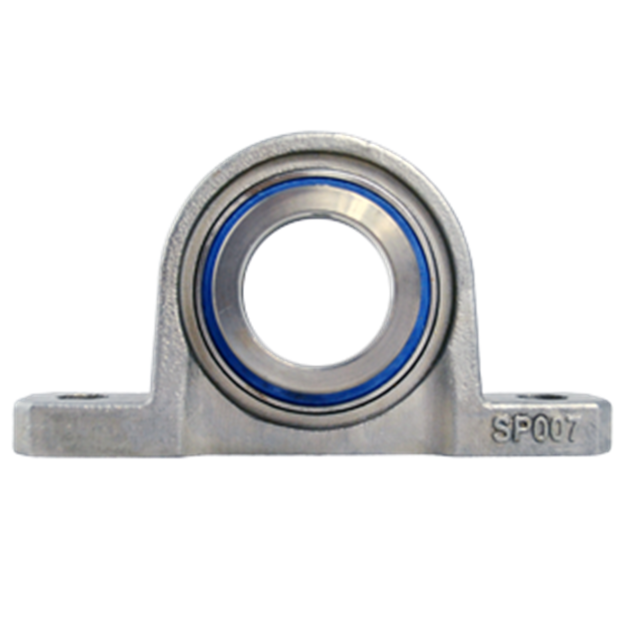

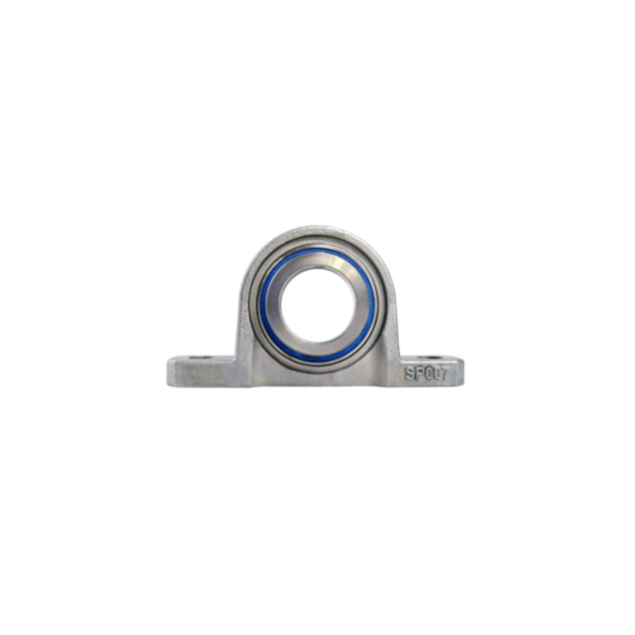

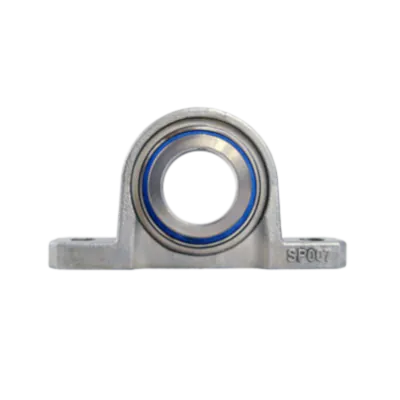

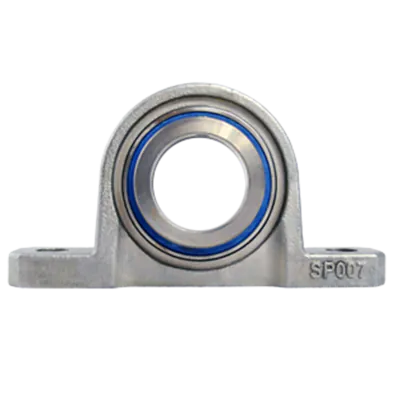

Mini pillow block bearing MUP Ø35, eccentric collar, stainless steel
MUP007The MUP Ø35 mini stainless steel pillow block bearing is a high-quality bearing designed specifically for the food industry and other demanding environments. With its extra narrow design and hygienic features, this bearing is perfect for applications that require exceptional cleanliness and durability.
Specifications
Product description
Downloads
€113.30
In stock
Expected shipment: 24-02-2025
More Information
Bolt size
M10
Grease nipple
None
Hole distance (mm)
118
Shaft size (mm)
Ø35
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
MUP
Mounting
Eccentric
Housing type
2-bolt pillow block bearing
House material
Stainless steel
Description
Key features:
- Extra narrow design: The mini stainless steel pillow block bearing is compact and space-saving, making it suitable for tight installations.
- Hygienic design: This bearing meets the strict hygiene standards of the food industry, ensuring safe and clean operations.
- Eccentric collar lock: The eccentric collar lock provides a secure and reliable locking mechanism, preventing unwanted movement and ensuring stability.
- Sealings NBR: The bearing is equipped with NBR sealings, which effectively prevent the entry of contaminants.
- No surface coating required: Unlike other bearings, the NG MUP Ø35 does not require any surface coating.
Materials:
- Stainless steel housing: The housing of this bearing is made from AISI 304 stainless steel.
- Stainless steel bearing: The bearing is constructed from AISI 440C stainless steel.
