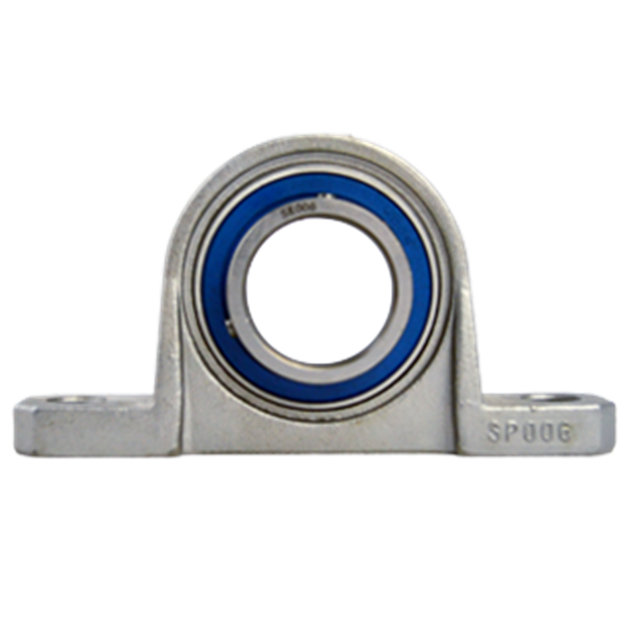

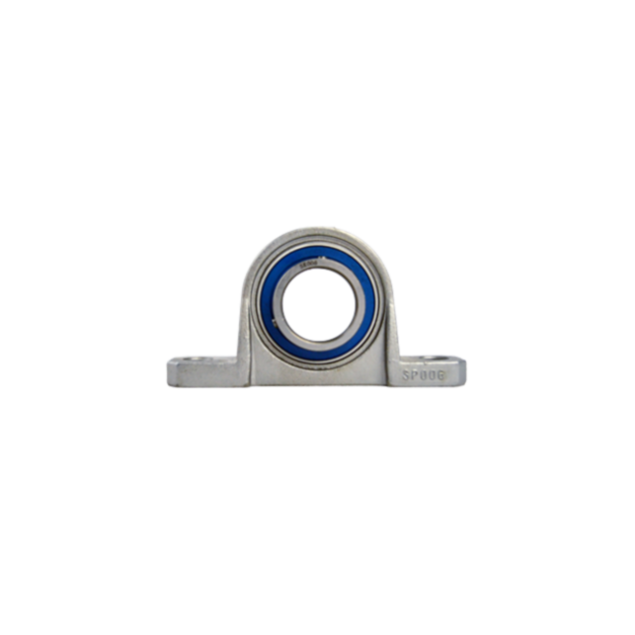

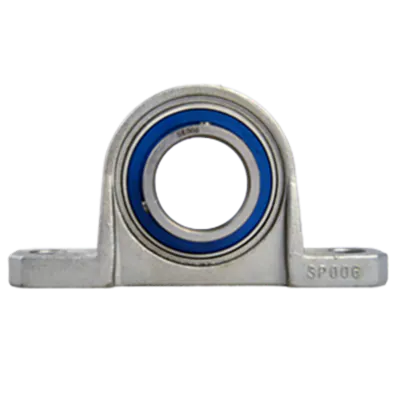

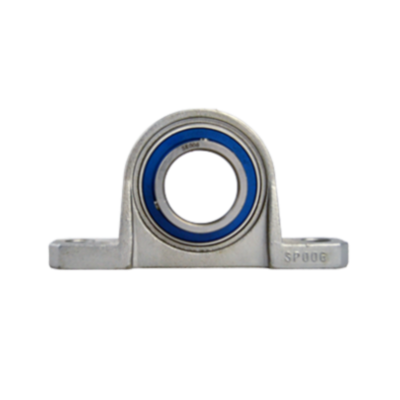

Mini pillow block bearing MUP Ø30, eccentric collar, stainless steel
MUP006
Specifications
Product description
Downloads
€69.70
In stock
Expected shipment: 10-11-2024
More Information
Bolt size
M10
Grease nipple
None
Hole distance (mm)
106
Shaft size (mm)
Ø30
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
MUP
Mounting
Eccentric
Housing type
2-bolt pillow block bearing
House material
Stainless steel
Color
Black
Description
Key features:
- Hygienic design: This bearing is specially crafted for the food industry, offering a reliable solution that meets strict hygiene standards.
- Extra narrow bearings: The compact design of the NG MUP Ø30 makes it perfect for applications with limited space requirements.
- Eccentric collar lock: The bearing comes with an eccentric collar lock, ensuring a secure and tight fit.
- NBR seals: Equipped with sealings made from NBR (Nitrile Butadiene Rubber), this bearing provides enhanced protection against contaminants and moisture.
- No surface coating required: The NG MUP Ø30 features a stainless steel housing made from AISI 304, eliminating the need for additional surface coatings.
Materials:
- Stainless steel housing: The housing of this bearing is constructed with AISI 304 stainless steel.
- Stainless steel bearings: The bearing is made from AISI 440C stainless steel.
