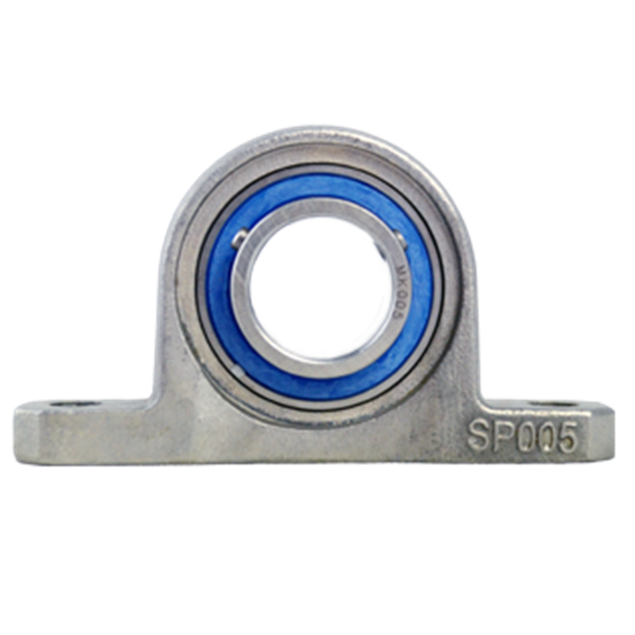

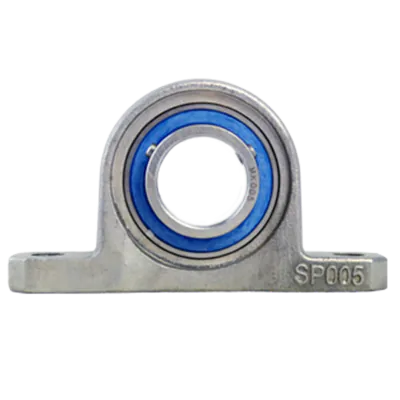

Mini pillow block bearing MUP Ø25, eccentric collar, stainless steel
MUP005The MUP Ø25 mini stainless steel pillow block bearing is a bearing designed for the food industry and other demanding environments. With its extra narrow design and hygienic construction, this bearing is ideal for applications that require precision and cleanliness
Specifications
Product description
Downloads
€54.20
In stock
Expected shipment: 24-02-2025
More Information
Bolt size
M8
Grease nipple
None
Hole distance (mm)
90
Shaft size (mm)
Ø25
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
MUP
Mounting
Eccentric
Housing type
2-bolt pillow block bearing
House material
Stainless steel
Description
Key Features:
- Extra narrow design: The compact size of this bearing makes it suitable for tight spaces and applications where space is limited.
- Hygienic design: The stainless steel housing, AISI 304, ensures corrosion resistance and makes it easy to clean, making it perfect for the food industry.
- Eccentric collar lock: The eccentric collar lock mechanism allows for easy and secure mounting.
- NBR sealings: Equipped with NBR sealings, this bearing provides effective protection against contamination.
- No surface coating required: The stainless steel materials used in this bearing eliminate the need for additional surface coatings.
Materials:
- Stainless steel housing: The housing of this pillow block bearing is made from AISI 304 stainless steel.
- Stainless steel bearing: The bearing in this pillow block is constructed from AISI 440C stainless steel.
