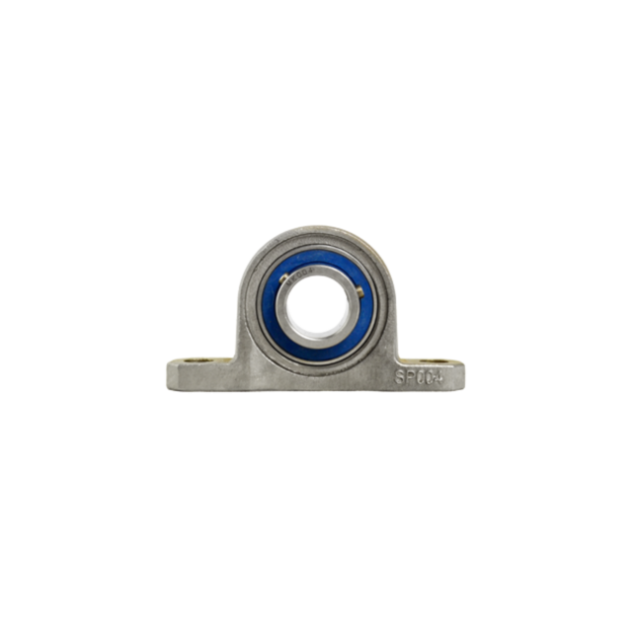

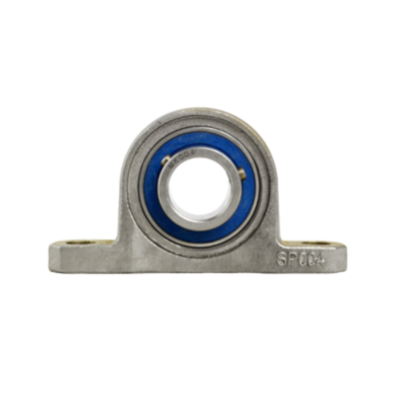

Mini pillow block bearing MUP Ø20, eccentric collar, stainless steel
MUP004The MUP Ø20 mini stainless steel pillow block bearing is a bearing designed specifically for demanding environments, particularly in the food industry. This extra narrow bearing is crafted with precision to meet the rigorous standards of hygiene and durability
Specifications
Product description
Downloads
€45.58
In stock
Expected shipment: 05-02-2025
More Information
Bolt size
M8
Grease nipple
None
Hole distance (mm)
80
Shaft size (mm)
Ø20
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
MUP
Mounting
Eccentric
Housing type
2-bolt pillow block bearing
House material
Stainless steel
Description
Key features:
- Eccentric collar lock: Ensures secure and reliable locking of the bearing, preventing any unwanted movement or slippage.
- Sealing NBR: Equipped with NBR sealings, providing protection against contaminants and maintaining optimal performance.
- No surface coating required: The bearing's stainless steel construction eliminates the need for additional surface coatings.
Materials:
- Stainless steel housing: The housing is made from AISI 304 stainless steel, making it ideal for applications in harsh and corrosive environments.
- Stainless steel bearing: The bearing is crafted from AISI 440C stainless steel.
