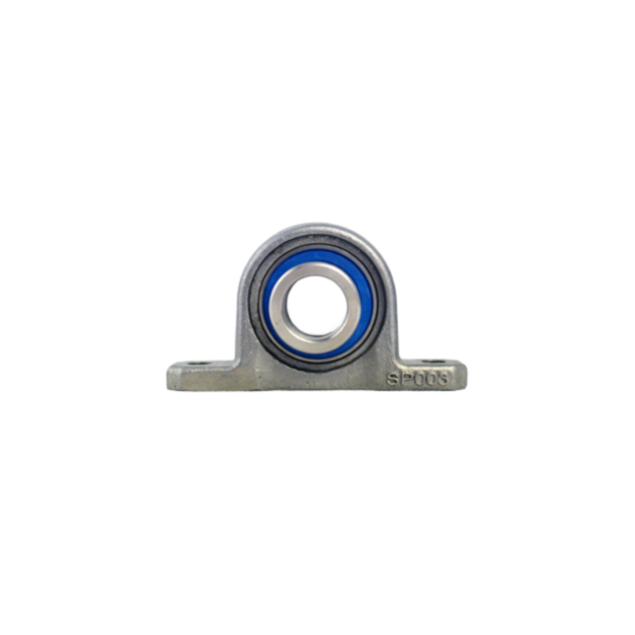

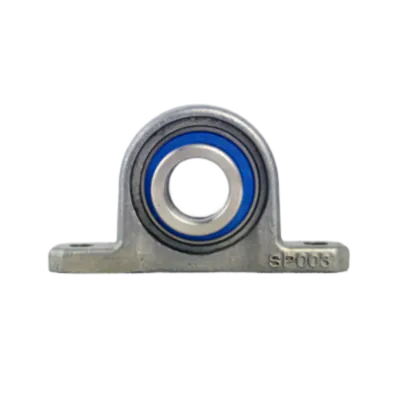

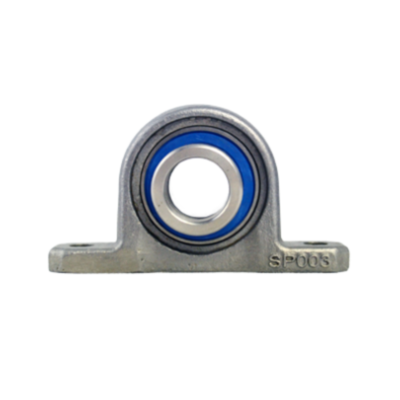

Mini pillow block bearing MUP Ø17, eccentric collar, stainless steel
MUP003The MUP Ø17 mini stainless steel pillow block bearing, is a reliable and high-performance bearing designed specifically for the food industry and other demanding environments. With its extra narrow construction and hygienic design, this bearing ensures optimal functionality and durability even in the harshest conditions
Specifications
Product description
Downloads
€36.40
In stock
Expected shipment: 24-02-2025
More Information
Bolt size
M6
Grease nipple
None
Hole distance (mm)
67
Shaft size (mm)
Ø17
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
MUP
Mounting
Eccentric
Housing type
2-bolt pillow block bearing
House material
Stainless steel
Description
Key features:
- Eccentric collar lock: The MUP comes equipped with an eccentric collar lock, ensuring secure and reliable shaft attachment.
- Sealing NBR: The inclusion of NBR sealings provides protection against contaminants, ensuring a hygienic and clean environment.
- No surface coating required: This bearing eliminates the need for surface coating.
Materials:
- Stainless steel housing: The bearing housing is constructed from stainless steel AISI 304.
- Stainless steel bearing: The bearing is made from stainless steel AISI 440C.
