Description
Key features:

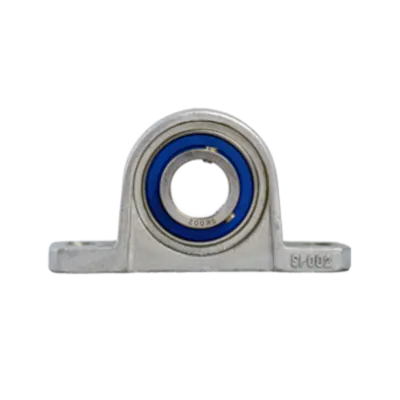

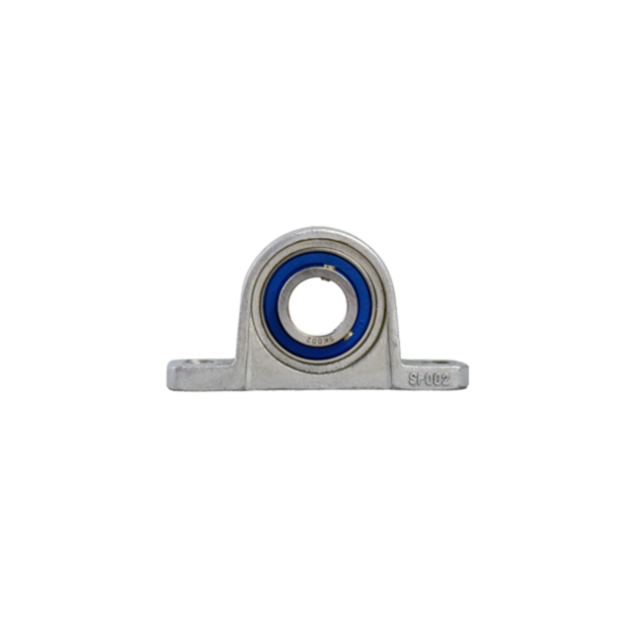

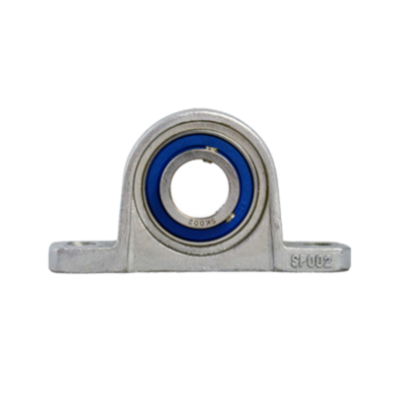

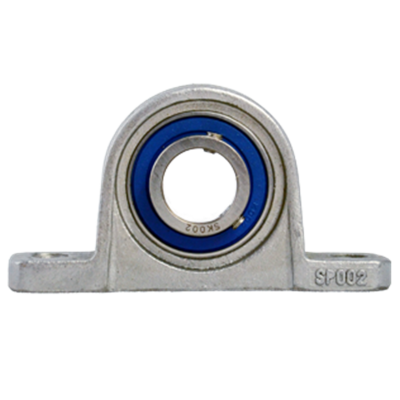

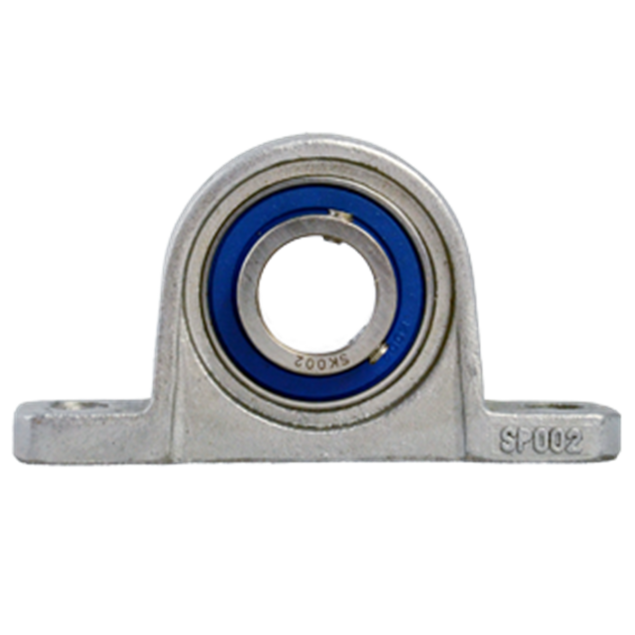

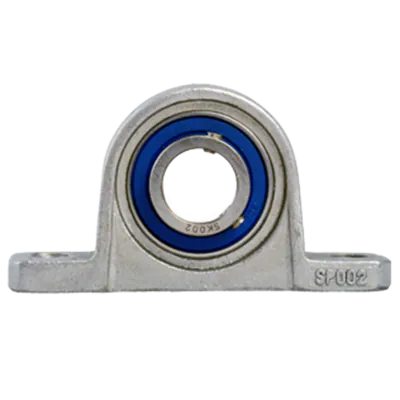

- Extra narrow design: The compact size of this mini pillow block bearing allows for easy installation and integration into limited spaces.
- Eccentric collar lock: The bearing is equipped with an eccentric collar lock mechanism, providing a secure and reliable grip for enhanced stability.
- NBR sealing: With sealings made of NBR (Nitrile Butadiene Rubber), this bearing effectively prevents the ingress of contaminants and ensures a clean and hygienic operation.
- Surface coating not required: The pillow block bearing eliminates the need for any surface coating.
Materials:
- Stainless steel housings: The housing of this pillow block bearing is constructed from AISI 304 stainless steel.
- Stainless steel bearings: The bearings themselves are made from AISI 440C stainless steel.
Specifications
Grease nipple
None

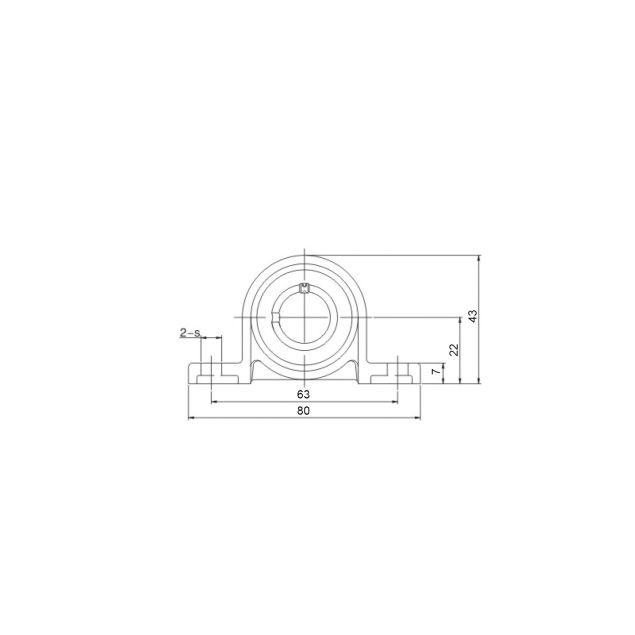

Hole distance (mm)
63
Shaft size (mm)
Ø15
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
MUP
Mounting
Eccentric
Housing type
2-bolt pillow block bearing
House material
Stainless steel
Downloads
Foreign trade
HS-Code
84832000
ERP net weight (Kg)
0.13
Country of origin
CHN
