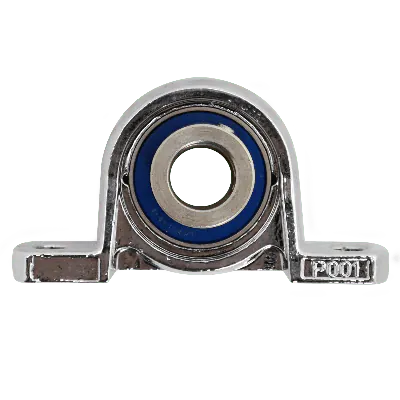

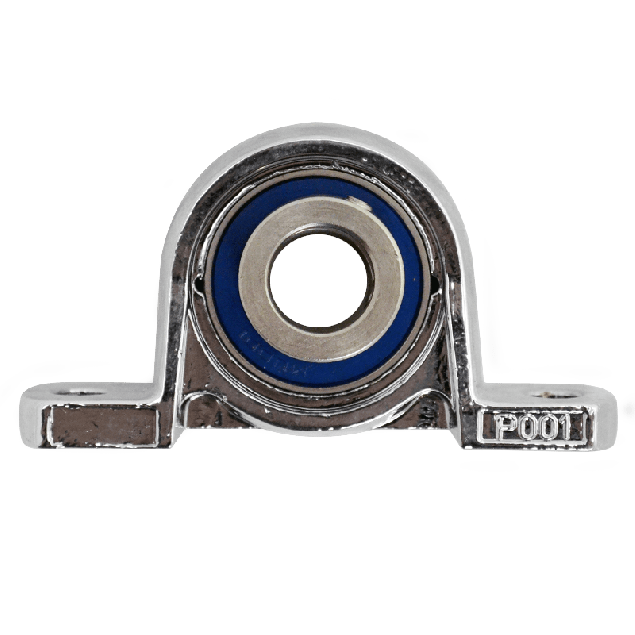

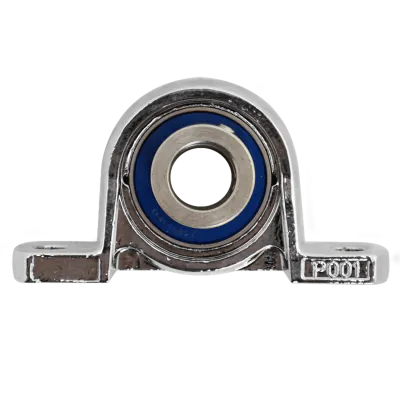

Mini pillow block bearing MUP Ø15, eccentric collar, stainless steel
MUP001The MUP Ø12 mini stainless steel pillow block bearing, is a high-quality and hygienic bearing designed to excel in the food industry and other rigorous environments. This pillow block bearing is specially crafted to meet the demands of precision, durability, and cleanliness, making it an ideal choice for critical applications
Specifications
Product description
Downloads
€27.30
Made to order
Expected shipment: 24-03-2025
More Information
Bolt size
M6
Grease nipple
None
Hole distance (mm)
56
Shaft size (mm)
Ø12
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
MUP
Mounting
Eccentric
Housing type
2-bolt pillow block bearing
House material
Stainless steel
Description
Key features:
- Extra narrow design: The mini pillow block bearing is built with an extra narrow profile, saving valuable space.
- Hygienic construction: Engineered with a hygienic design, this bearing ensures food safety standards are met.
- Eccentric collar lock: The bearing comes with an eccentric collar lock, offering secure and reliable shaft attachment.
- NBR sealings: Equipped with NBR sealings, the bearing provides superior protection against dust, moisture, and contaminants, ensuring extended service life and optimal performance.
- Surface coating-free: Thanks to the innovative design, this pillow block bearing requires no surface coating.
Materials:
- Stainless steel housings: The bearing's housing is constructed from AISI 304 stainless steel.
- Stainless steel bearings: The internal bearings are made of AISI 440C stainless steel.
