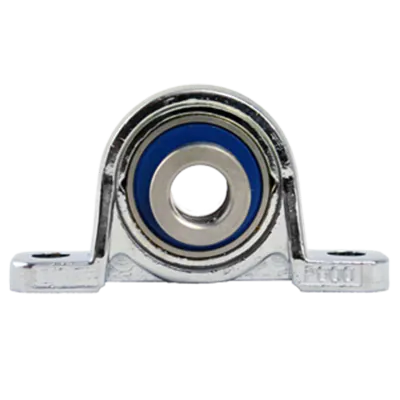

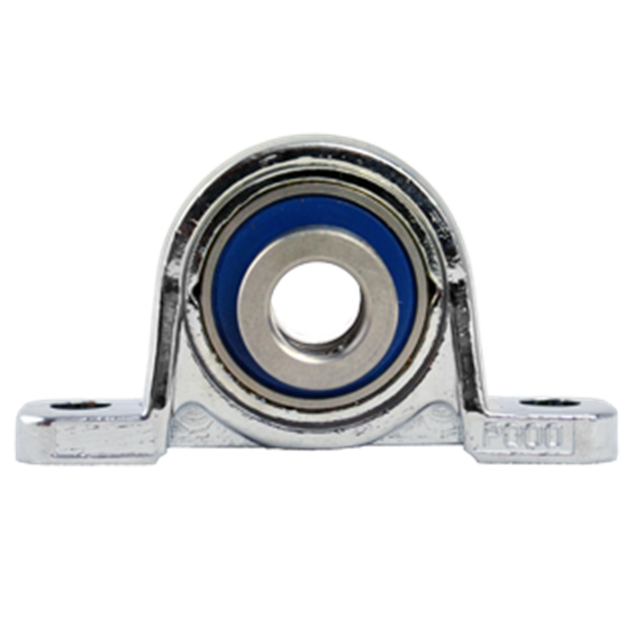

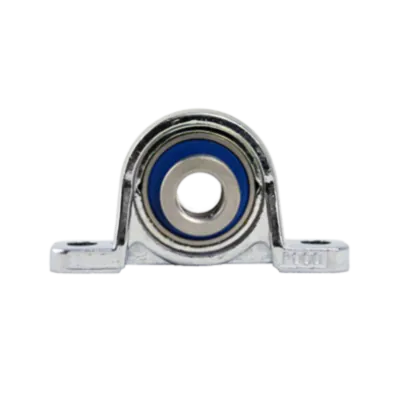

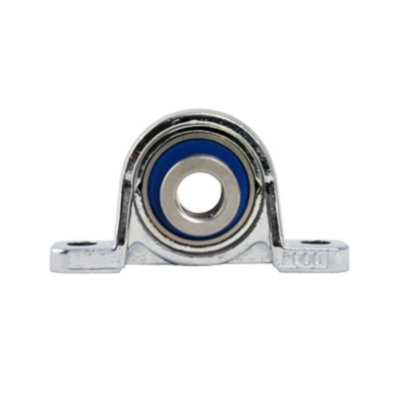

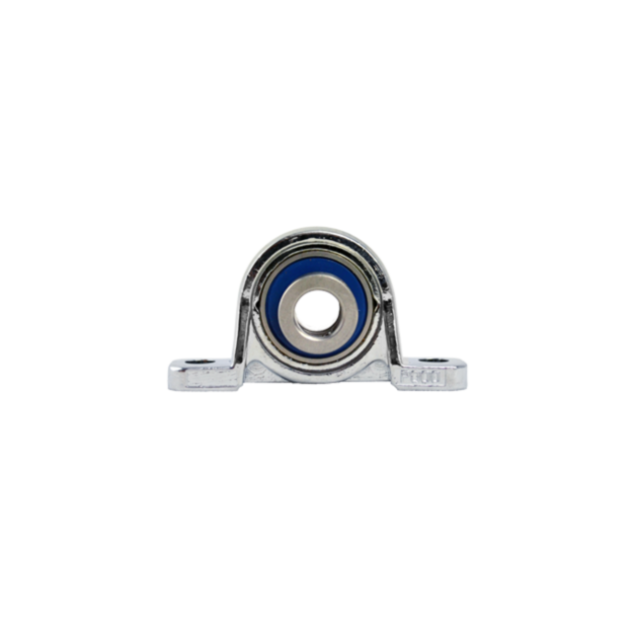

Mini pillow block bearing MUP Ø10, eccentric collar, stainless steel
MUP000The MUP Ø10 mini stainless steel pillow block bearing is a bearing specifically designed for the food industry and other challenging environments. With its hygienic design and superior materials, this bearing ensures optimal performance and durability
Specifications
Product description
Downloads
€22.12
Made to order
Expected shipment: 06-01-2025
More Information
Bolt size
M6
Grease nipple
None
Hole distance (mm)
53
Shaft size (mm)
Ø10
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
MUP
Mounting
Eccentric
Housing type
2-bolt pillow block bearing
House material
Stainless steel
Description
Key features:
- Extra narrow design: This bearing's slim profile allows for easy installation in tight spaces, making it perfect for applications where space is limited.
- Eccentric collar lock: The eccentric collar lock feature ensures secure and reliable shaft attachment.
- NBR sealings: Equipped with high-NBR sealings, the NG MUP Ø10 effectively prevents contaminants from entering the bearing, promoting a clean and hygienic environment.
- No surface coating required: The NG MUP Ø10 does not require any surface coating, reducing maintenance efforts.
Materials:
- Stainless steel housings: The housing of this bearing is constructed from AISI 304 stainless steel.
- Stainless steel bearings: The NG MUP Ø10 features AISI 440C stainless steel bearings.
