Description
Key features:
- Extra narrow design: The compact size of the bearing allows for easy installation in tight spaces.
- Hygienic design: The stainless steel construction ensures cleanliness and prevents contamination, making it suitable for use in the food industry.
- Set screw lock: The bearing is equipped with a set screw lock mechanism for secure attachment and stability.
- Sealing protection: The NBR sealings provide an additional layer of protection, preventing the ingress of dirt, moisture, and other contaminants.
- Surface coating not required: The stainless steel housing and bearings eliminate the need for surface coating.
Materials:
- Stainless steel housings (AISI 304): The housing is made of stainless steel.
- Stainless steel bearings (AISI 440C): The stainless steel bearings offer superior strength and durability, even in harsh operating conditions.
Specifications
Grease nipple
None

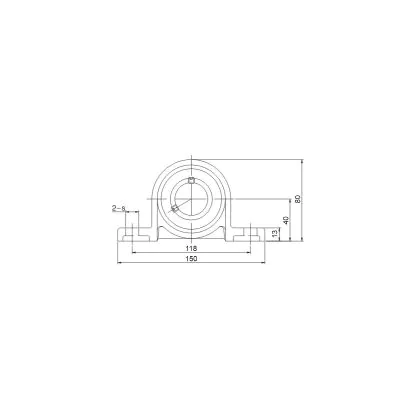

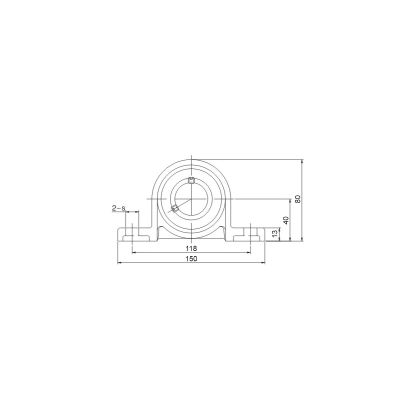

Hole distance (mm)
118
Shaft size (mm)
Ø35
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
MKP
Mounting
Set screw

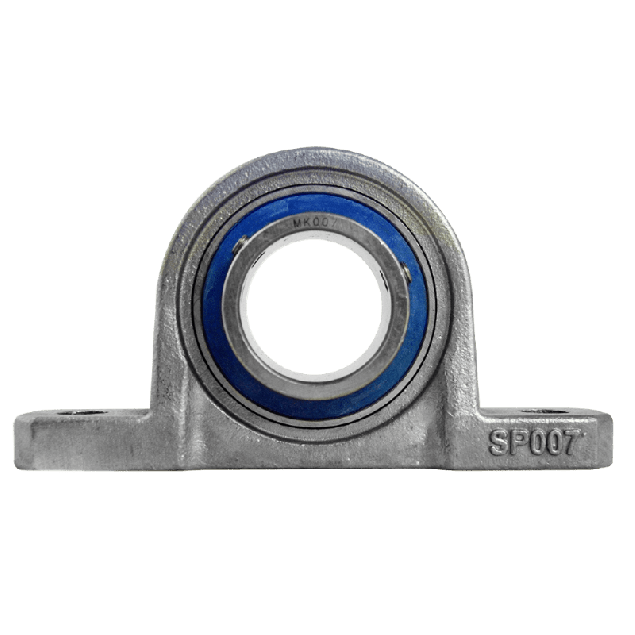

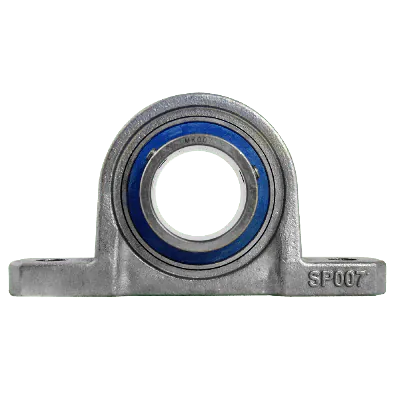

Housing type
2-bolt pillow block bearing
House material
Stainless steel
Downloads
Foreign trade
HS-Code
84832000
ERP net weight (Kg)
0.59
Country of origin
CHN
