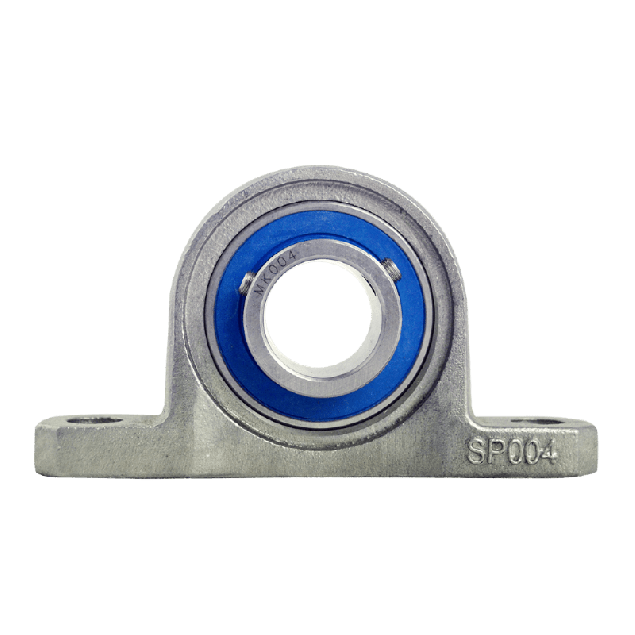

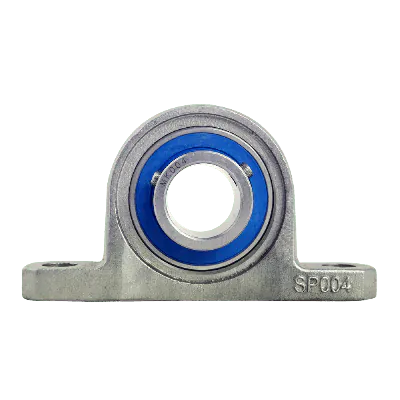

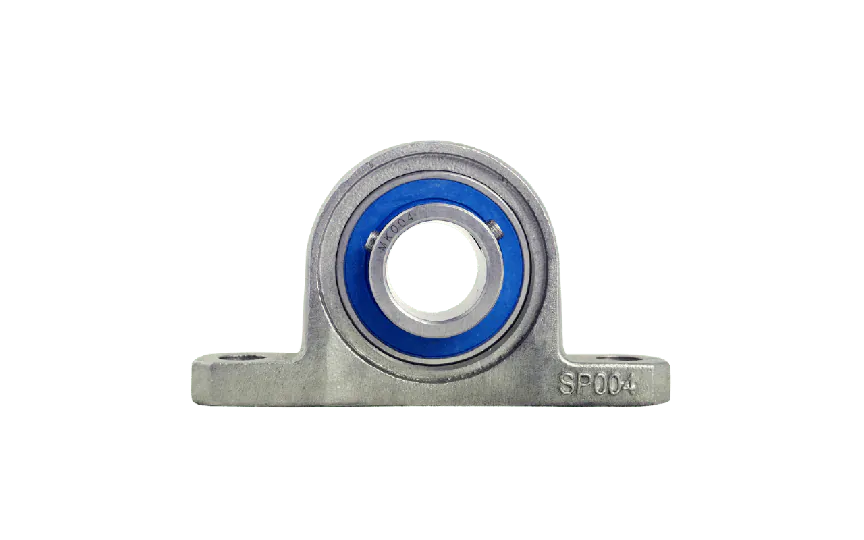

Mini pillow block bearing MKP Ø20, set screw, stainless steel
MKP004The MKP Ø20 mini stainless steel pillow block bearing, is designed to meet the strict demands of the food industry and other challenging environments. With its hygienic design and narrow profile, this bearing is a perfect choice for applications where space is limited and cleanliness is essential
Specifications
Product description
Downloads
€39.90
In stock
Expected shipment: 24-02-2025
More Information
Bolt size
M8
Grease nipple
None
Hole distance (mm)
80
Shaft size (mm)
Ø20
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
MKP
Mounting
Set screw
Housing type
2-bolt pillow block bearing
House material
Stainless steel
Color
Black
Description
Key features:
- Hygienic design: The mini stainless steel pillow block bearing is specifically engineered to meet the stringent standards of the food industry, ensuring optimal hygiene and preventing contamination.
- Set screw lock: The bearing comes equipped with a set screw lock mechanism, providing a secure and reliable connection between the shaft and the bearing housing.
- Sealed protection: The NBR sealings ensure excellent protection against dust, moisture, and other external elements.
- Surface coating not required: The bearing doesn't require any additional surface coating, saving both time and resources.
Materials:
- Stainless steel housings: The bearing housing is constructed from AISI 304 stainless steel.
- Stainless steel bearings: The bearings themselves are made from AISI 440C stainless steel.
