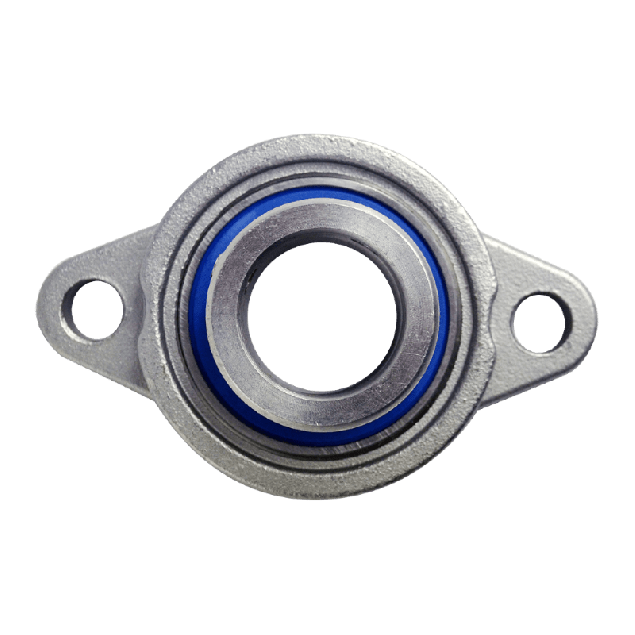

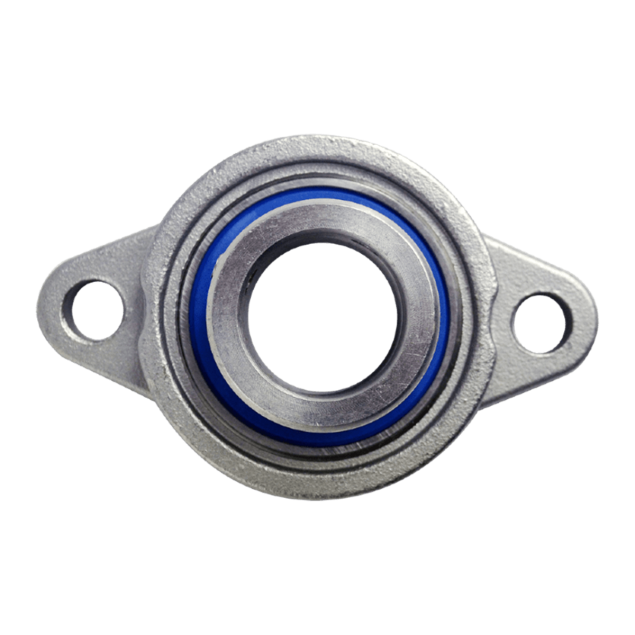

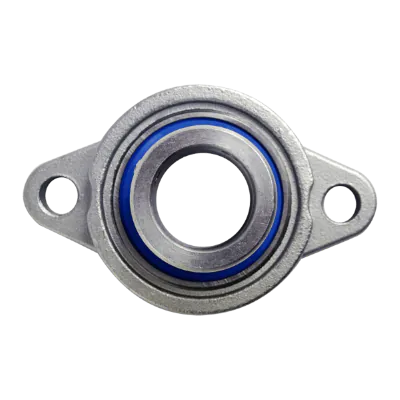

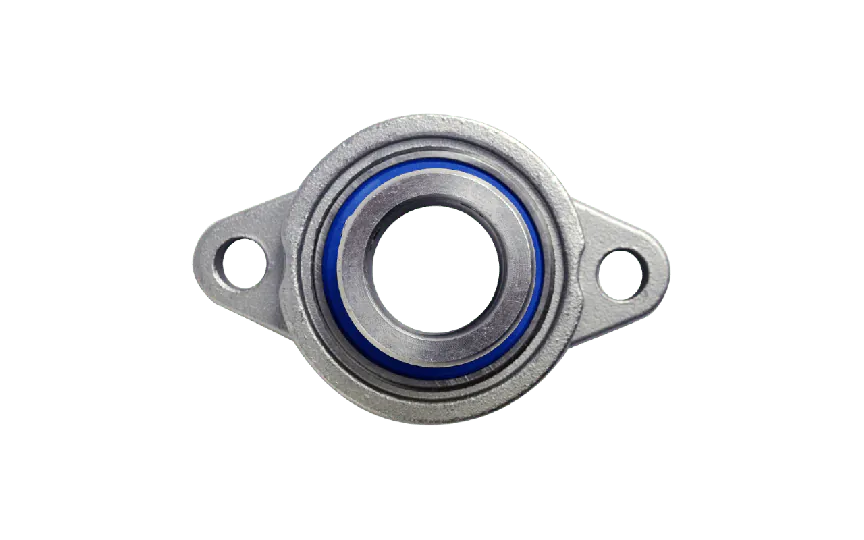

Mini flange bearing MUFL Ø55, eccentric collar, stainless steel
MUFL005The MUFL Ø25 mini stainless steel flange bearing, is a solution for narrow bearing applications in the food industry and other demanding environments. With its hygienic design and durability, this flange bearing offers unmatched performance and reliability
Specifications
Product description
Downloads
€49.87
In stock
Expected shipment: 02-11-2024
More Information
Bolt size
M8
Grease nipple
None
Hole distance (mm)
75
Shaft size (mm)
Ø25
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
MUFL
Mounting
Eccentric
Housing type
2-bolt flange bearing
House material
Stainless steel
Color
Black
Description
Key features:
- Hygienic design: The mini stainless steel flange bearing is specifically designed to meet the stringent requirements of the food industry, ensuring safe and clean operations.
- Eccentric collar lock: Choose between an eccentric collar lock mechanism, which provides easy installation and secure locking, ensuring optimal performance in demanding applications.
- Surface coating not required: With the MKF Ø25 does not require any surface coating, making it convenient and hassle-free.
Materials:
- Stainless steel housing: The housing is made of AISI 304 stainless steel.
- Stainless steel bearing: Bearing made of AISI 304 stainless steel.
