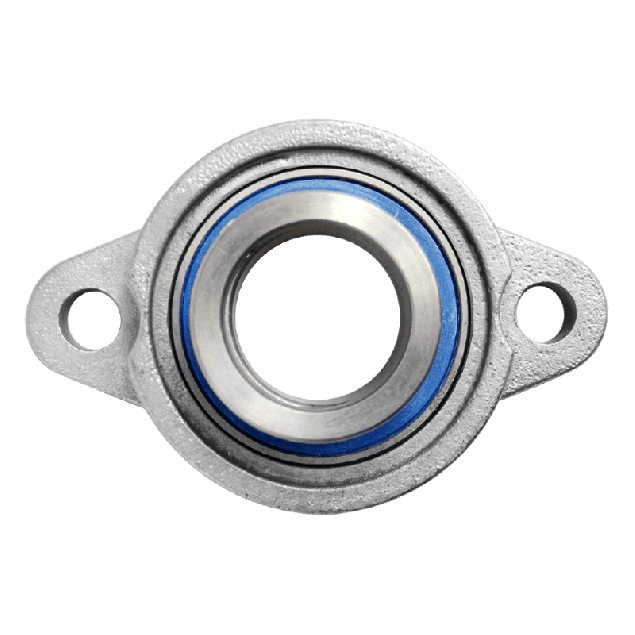

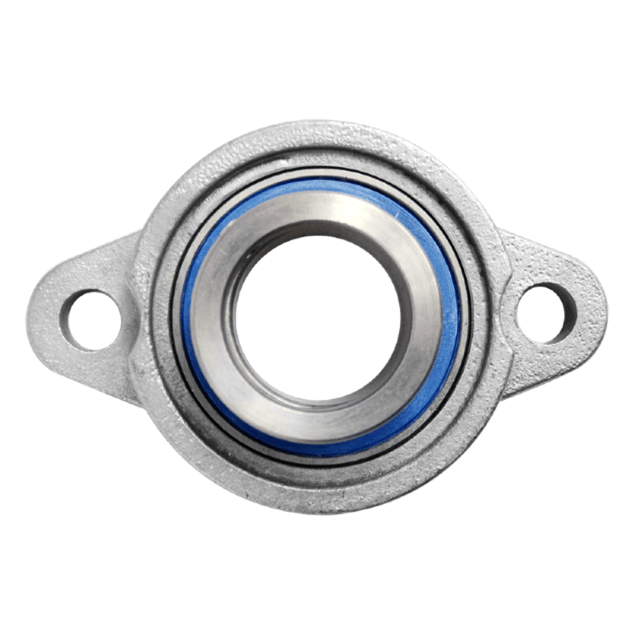

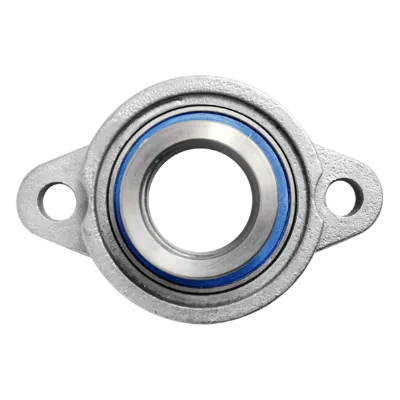

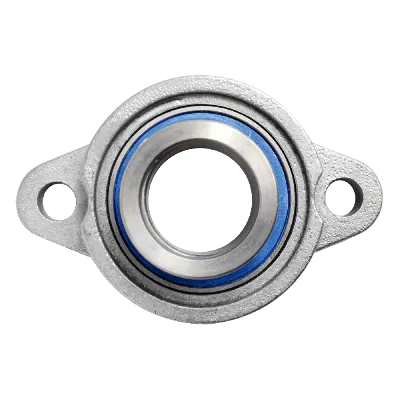

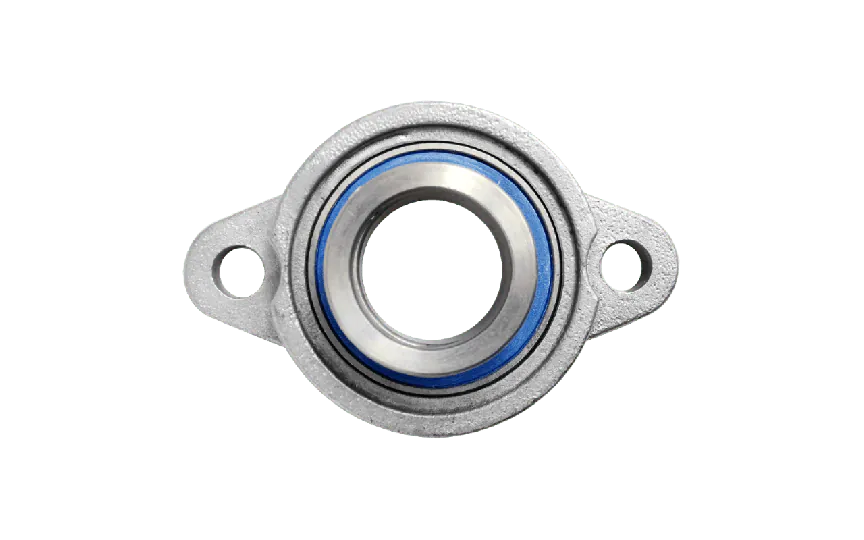

Mini flange bearing MUFL Ø35, eccentric collar, stainless steel
MUFL007The MUFL Ø35 mini stainless steel flange bearing, is designed to meet the rigorous demands of the food industry and other challenging environments. With its extra narrow design and hygienic construction, this bearing provides optimal performance and reliability
Specifications
Product description
Downloads
€100.27
Made to order
Expected shipment: 20-01-2025
More Information
Bolt size
M10
Grease nipple
None
Hole distance (mm)
95
Shaft size (mm)
Ø35
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
MUFL
Mounting
Eccentric
Housing type
2-bolt flange bearing
House material
Stainless steel
Description
Key features:
- Miniature size: The compact design of this bearing allows for easy installation and integration into tight spaces.
- Hygienic design: Suitable for the food industry, the bearing is crafted to meet strict hygiene standards and prevent contamination.
- Eccentric collar lock: Choose between an eccentric collar lock for added stability and secure mounting.
- Surface coating-free: The bearing comes without any surface coating requirements, making maintenance hassle-free.
Materials:
- Stainless steel housing: The housing is made from AISI 304 stainless steel.
- Stainless steel bearing: The bearings are constructed from AISI 440C stainless steel.
