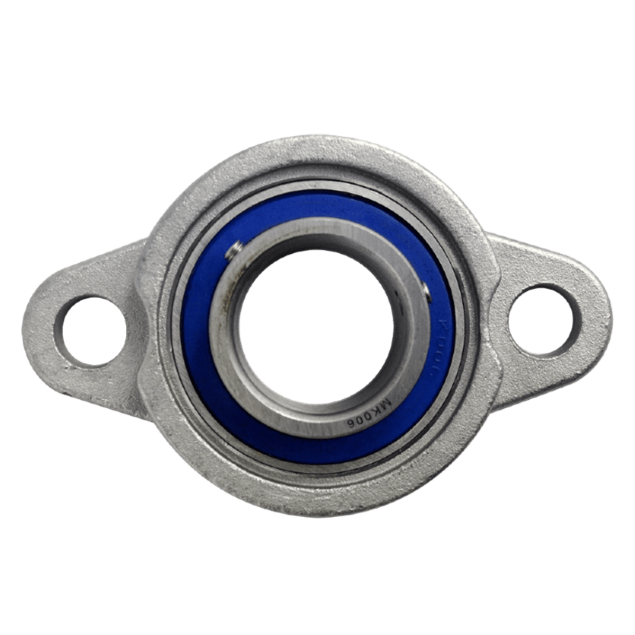

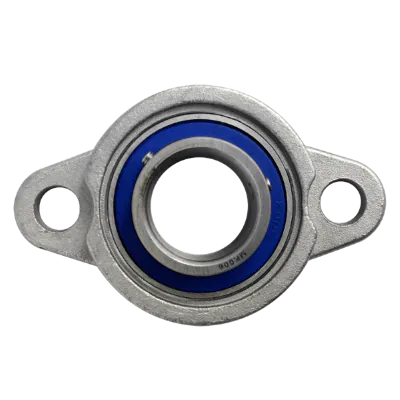

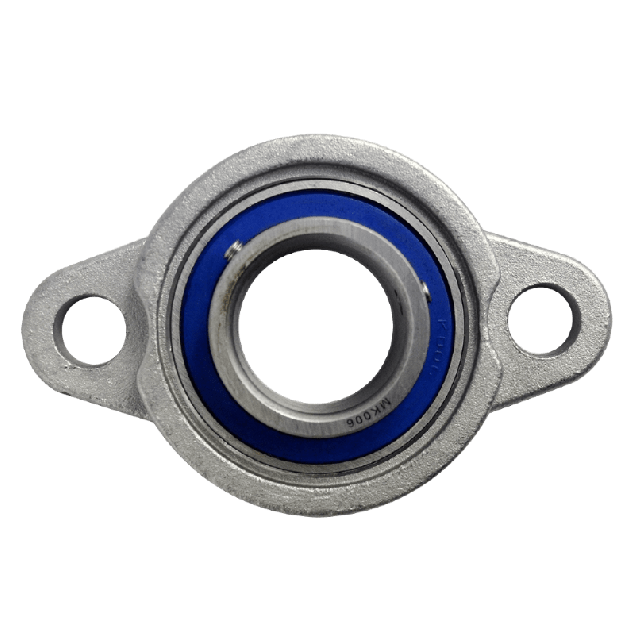

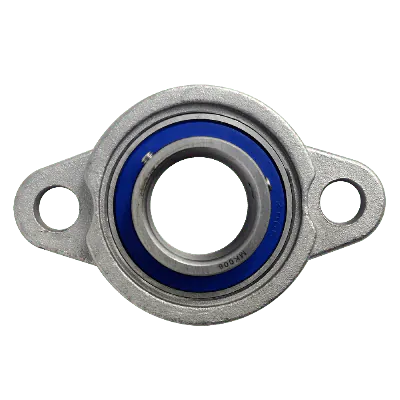

Mini flange bearing MKFL Ø30, set screw, stainless steel
MKFL006MKFL Ø30 mini stainless steel flange bearing, is a bearing solution designed specifically for the food industry and other demanding environments. This compact and durable bearing is perfect for applications where space is limited and hygiene is crucial
Specifications
Product description
Downloads
€59.00
Made to order
Expected shipment: 09-04-2025
More Information
Bolt size
M10
Grease nipple
None
Hole distance (mm)
85
Shaft size (mm)
Ø30
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
MKFL
Mounting
Set screw
Housing type
2-bolt flange bearing
House material
Stainless steel
Color
Black
Description
Key features:
- Hygienic design: Extra narrow bearings with a hygienic design ensure optimal cleanliness and safety for food industry applications.
- Set screw lock: The bearing is equipped with a set screw lock mechanism, providing secure and reliable attachment.
- Enhanced sealing: With NBR sealings, the MKFL offers superior protection against contaminants, ensuring maximum performance and longevity.
- Surface coating not required: The bearing is made from stainless steel housings and stainless steel bearings. This eliminates the need for surface coating, reducing maintenance requirements and enhancing operational efficiency.
Materials:
- Stainless steel housings: Crafted from AISI 304 stainless steel.
- Stainless steel bearings: The bearings are made from AISI 440C stainless steel.
