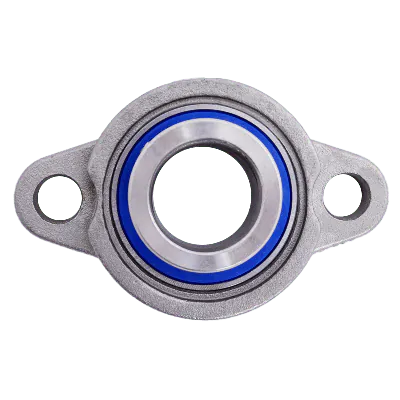

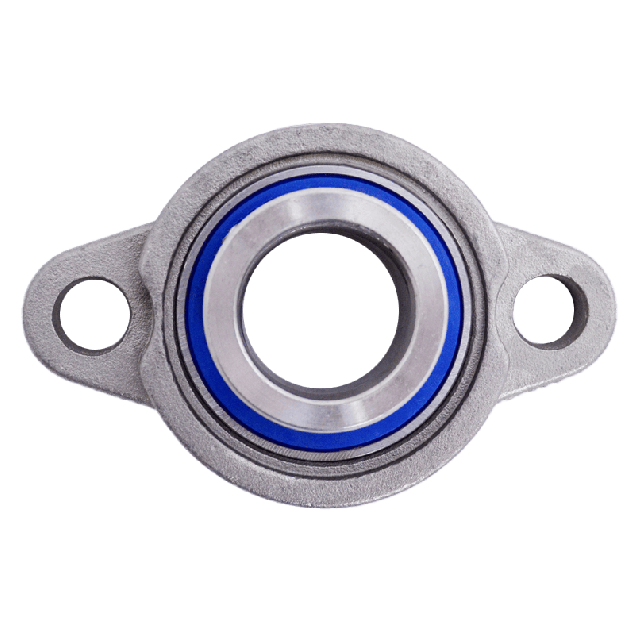

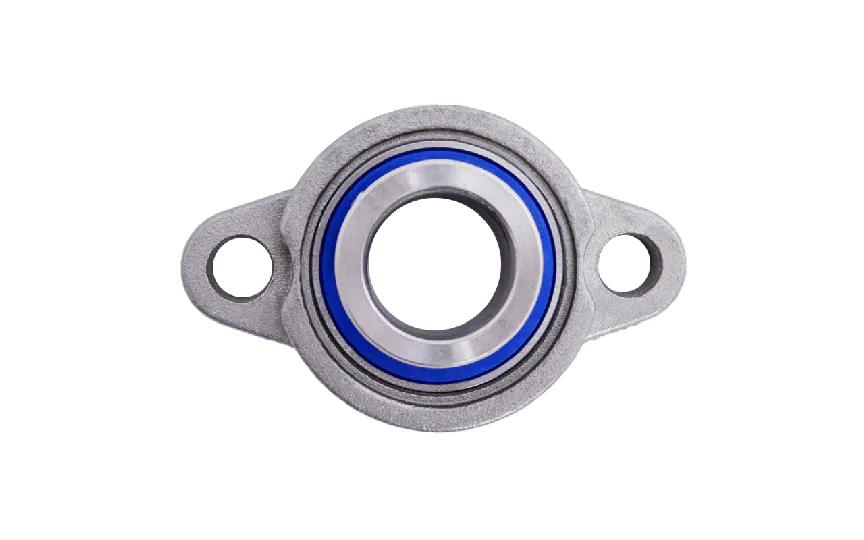

Mini flange bearing MUFL Ø30, eccentric collar, stainless steel
MUFL006Mini flange bearing MUFL Ø30 in stainless steel, with eccentric collar, ensures stable fit and adjustment in perpendicular shaft setups. Durable and corrosion resistant, ideal for demanding environments. Easy assembly and disassembly.
Specifications
Product description
Downloads
€62.90
In stock
Expected shipment: 02-04-2025
More Information
Bolt size
M10
Grease nipple
None
Hole distance (mm)
85
Shaft size (mm)
Ø30
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
MUFL
Mounting
Eccentric
Housing type
2-bolt flange bearing
House material
Stainless steel
Description
Key features:
- Miniature size: The MUFL Ø30 bearing is extra narrow, allowing it to fit into tight spaces without sacrificing performance.
- Suitable for demanding environments: Built to withstand the rigors of the food industry and other challenging environments, this bearing delivers durability and reliability.
- Eccentric collar lock: Choose between eccentric collar lock options for a secure and adjustable fit to your specific application requirements.
- Surface coating not required: The MKFL bearing comes with no surface coating requirements, simplifying installation and maintenance.
Materials:
- Stainless steel housing: The housing is crafted from AISI 304 stainless steel.
- Stainless steel bearings: The bearings are constructed from AISI 440C stainless steel.
