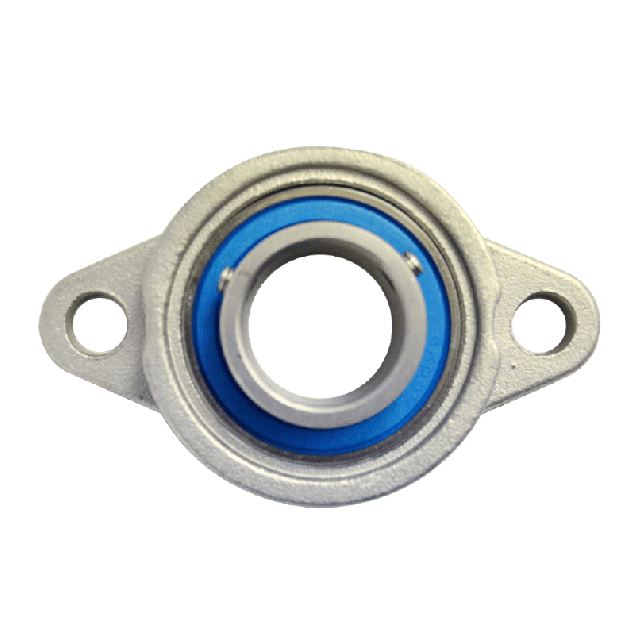

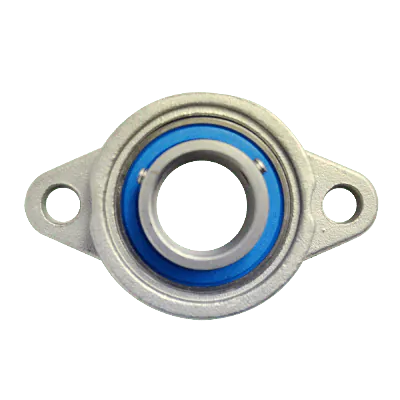

Mini flange bearing MKFL Ø25, set screw, stainless steel
MKFL005The MKFL Ø25 mini stainless steel flange bearing, is designed to meet the stringent requirements of the food industry and other challenging environments. This extra narrow bearing offers performance and durability, making it an ideal choice for demanding applications
Specifications
Product description
Downloads
€46.13
Made to order
Expected shipment: 17-01-2025
More Information
Bolt size
M8
Grease nipple
None
Hole distance (mm)
75
Shaft size (mm)
Ø25
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
MKFL
Mounting
Set screw
Housing type
2-bolt flange bearing
House material
Stainless steel
Description
Key features:
- Hygienic design: Specifically developed for the food industry, this mini stainless steel flange bearing adheres to strict hygiene standards.
- Set screw lock: The bearing is equipped with a reliable set screw lock mechanism, providing secure and stable installation.
- NBR sealings: The NG flange bearing is fitted with NBR sealings, which effectively prevent contamination and maintain optimal lubrication for enhanced performance.
- Surface coating not required: With no need for additional surface coating, this bearing minimizes maintenance requirements and simplifies installation processes.
Materials:
- Stainless steel housing: The housing of the flange bearing is constructed from AISI 304 stainless steel.
- Stainless steel bearing: The bearing is made from AISI 440C stainless steel.
