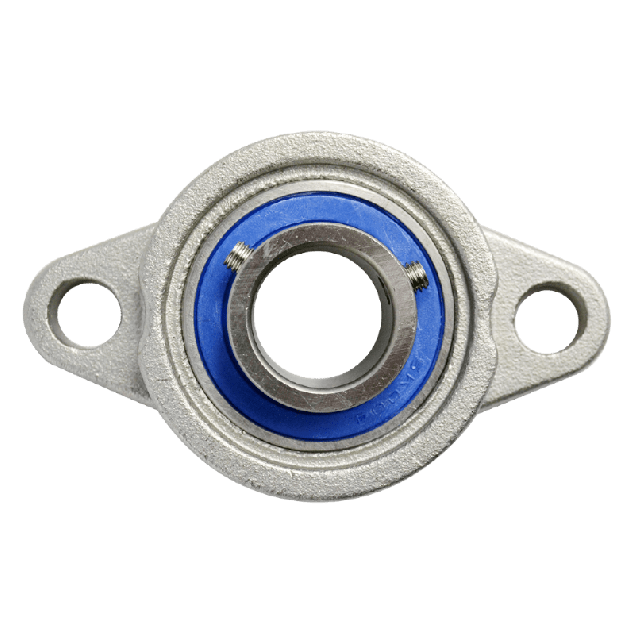

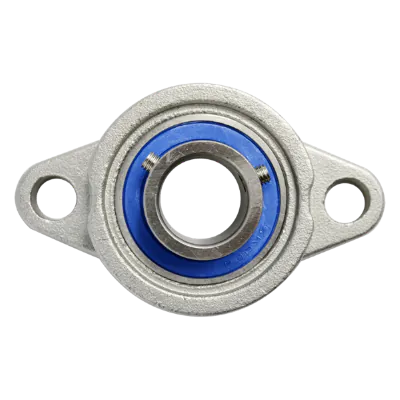

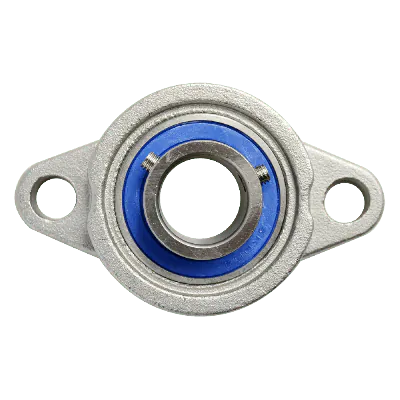

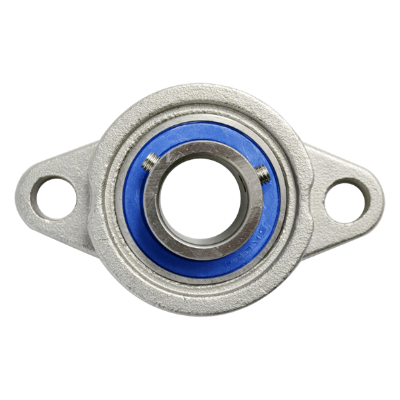

Mini flange bearing MKFL Ø20, set screw, stainless steel
MKFL004The MKFL Ø20 mini stainless steel flange bearing, a reliable and durable solution designed to meet the rigorous demands of the food industry and other challenging environments. This extra narrow bearing boasts a hygienic design and is equipped with a set screw lock for enhanced stability
Specifications
Product description
Downloads
€36.87
Made to order
Expected shipment: 06-01-2025
More Information
Bolt size
M8
Grease nipple
None
Hole distance (mm)
71
Shaft size (mm)
Ø20
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
MKFL
Mounting
Set screw
Housing type
2-bolt flange bearing
House material
Stainless steel
Description
Key features:
- Hygienic design: Ensures compliance with strict industry standards, making it ideal for the food industry and other demanding environments.
- Set screw lock: Provides a secure and stable attachment, preventing unwanted movement or displacement.
- NBR sealings: Equipped with high-quality NBR sealings that effectively protect the bearing, reducing the risk of contamination and ensuring optimal performance.
- No surface coating required: The stainless steel construction eliminates the need for additional surface coatings.
Materials:
- Stainless steel housings: The AISI 304.
- Stainless steel bearings: The AISI 440C.
