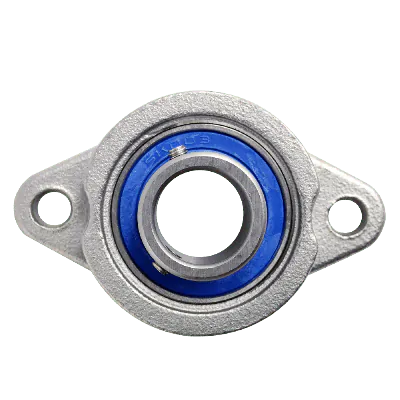

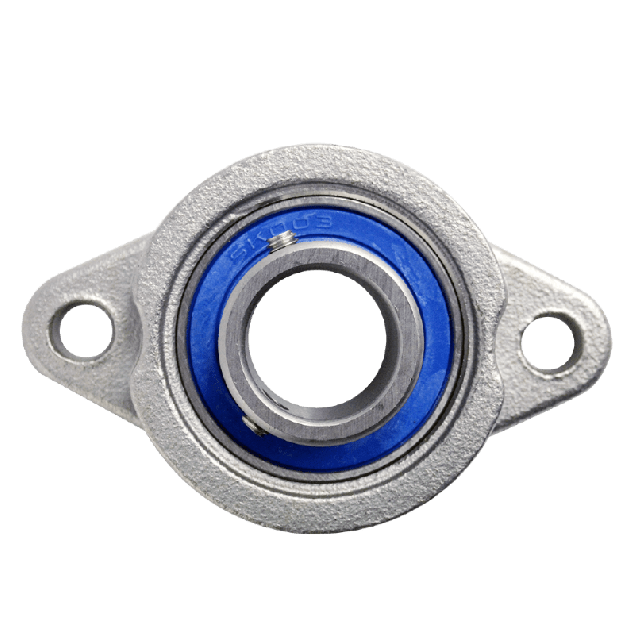

Mini flange bearing MKFL Ø17, set screw, stainless steel
MKFL003The MKFL Ø17 mini stainless steel flange bearing is a precision component designed for demanding environments. Its narrow and hygienic construction makes it ideal for the food industry and similar industries with high hygiene requirements. The flange bearing is equipped with a pinion screw.
Specifications
Product description
Downloads
€31.90
In stock
Expected shipment: 04-11-2024
More Information
Bolt size
M6
Grease nipple
None
Hole distance (mm)
56
Shaft size (mm)
Ø17
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
MKFL
Mounting
Set screw
Housing type
2-bolt flange bearing
House material
Stainless steel
Color
Black
Description
Key features:
- Narrow design: The extra narrow bearing is suitable for compact spaces and tight installations.
- Hygienic construction: Designed to meet the standards of the food industry and other demanding environments.
- Sealed for protection: Equipped with NBR sealings to safeguard against contaminants and maintain the integrity of the bearing.
- Surface coating not required: With no need for additional coating, this bearing reduces maintenance efforts and costs.
Materials:
- Stainless steel housings: Made from stainless stell AISI 304.
- Stainless steel bearings: Constructed with stainless steel AISI 440C.
