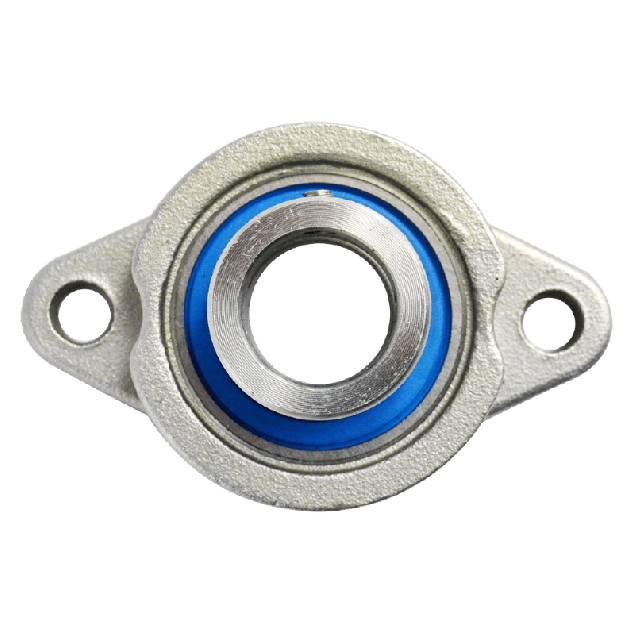

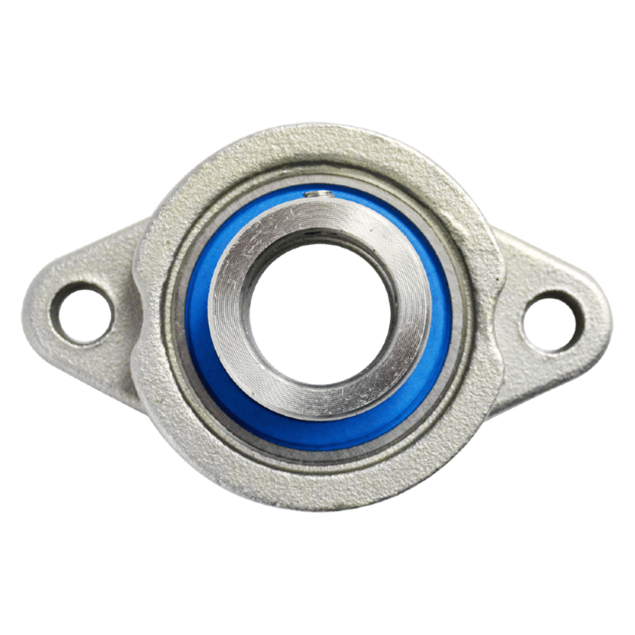

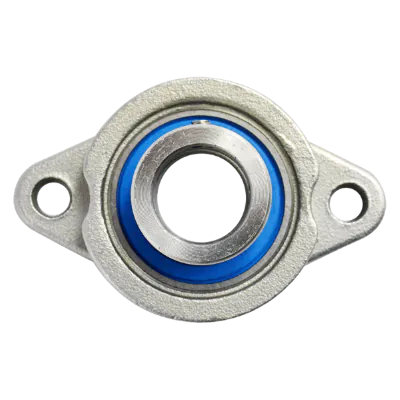

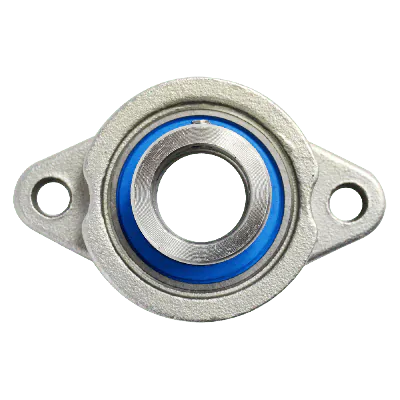

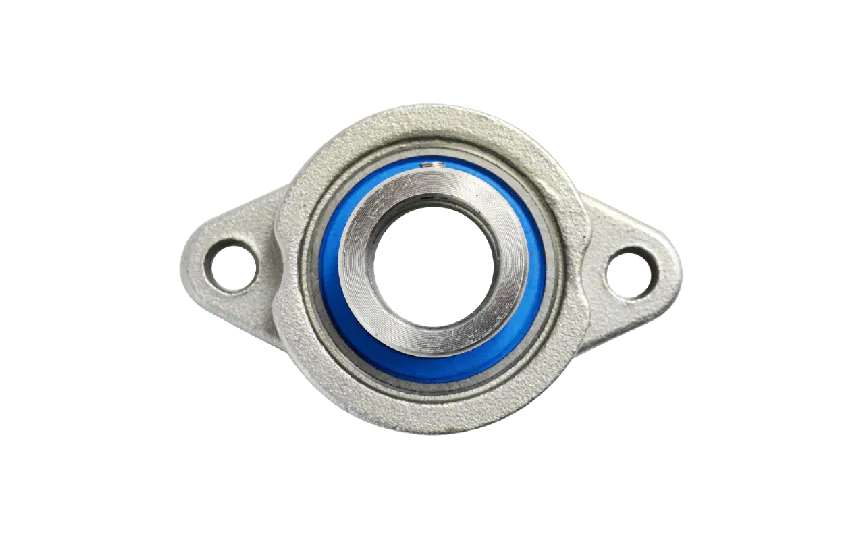

Mini flange bearing MUFL Ø17, eccentric collar, stainless steel
MUFL003The MUFL Ø17 mini stainless steel flange bearing is a bearing designed for use in demanding environments, particularly in the food industry. With its hygienic design and performance, this mini stainless steel flange bearing is an ideal choice for applications where cleanliness and reliability are paramount
Specifications
Product description
Downloads
€33.78
In stock
Expected shipment: 07-02-2025
More Information
Bolt size
M6
Grease nipple
None
Hole distance (mm)
56
Shaft size (mm)
Ø17
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
MUFL
Mounting
Eccentric
Housing type
2-bolt flange bearing
House material
Stainless steel
Description
Key features:
- Extra narrow design: The mini stainless steel bearing has an extra narrow profile, allowing it to fit into tight spaces and accommodate limited clearance requirements.
- Eccentric collar lock: This flange bearing comes with an eccentric collar lock, ensuring a secure and reliable attachment to the shaft, minimizing the risk of slippage or misalignment.
- No surface coating required: The MUFL does not require any surface coating, saving time and effort during installation and maintenance.
Materials:
- Stainless steel housing: The housing of this flange bearing is constructed from AISI 304 stainless steel.
- Stainless steel bearings: The bearings themselves are made from AISI 440C stainless steel.
