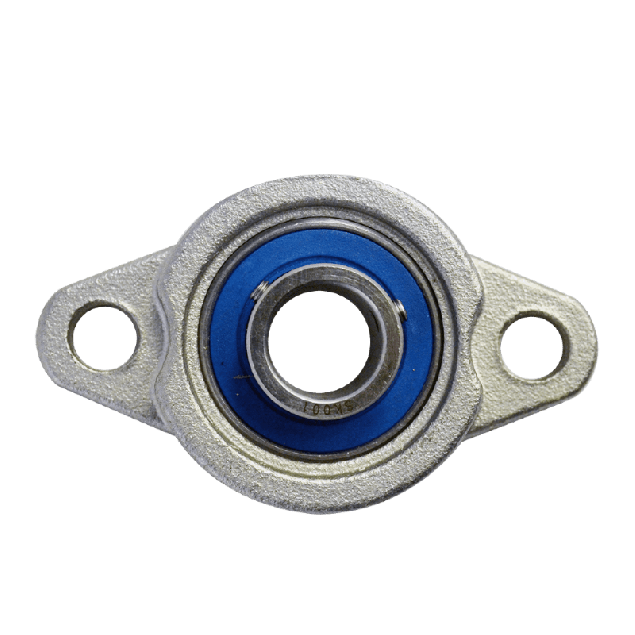

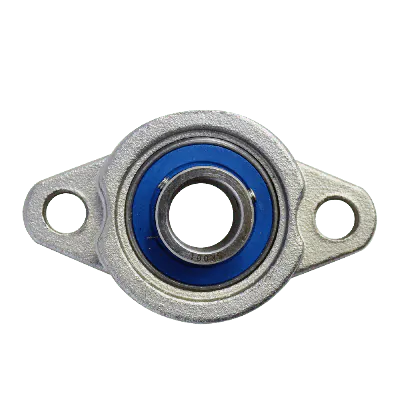

Mini flange bearing MKFL Ø12, set screw, stainless steel
MKFL001The MKFL Ø12 mini stainless steel flange bearing, is a precision-engineered solution designed for demanding environments, particularly in the food industry. With its sleek and hygienic design, this extra narrow bearing is the ideal choice for applications that require cleanliness and reliability
Specifications
Product description
Downloads
€24.40
Made to order
Expected shipment: 06-01-2025
More Information
Bolt size
M6
Grease nipple
None
Hole distance (mm)
48
Shaft size (mm)
Ø12
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
MKFL
Mounting
Set screw
Housing type
2-bolt flange bearing
House material
Stainless steel
Description
Key features:
- Hygienic design: Specifically developed for the food industry and other demanding environments.
- Set screw lock: Ensures a secure and stable fit, minimizing any chances of slippage or misalignment.
- NBR sealings: Equipped with high-quality NBR sealings, providing excellent protection against contamination and extending the bearing's lifespan.
- No surface coating required: The stainless steel material eliminates the need for any additional coating, reducing maintenance requirements and ensuring long-lasting performance.
Materials:
- Stainless steel housing: The housing is made of stainless steel AISI 304.
- Stainless steel bearing: The stainless steel bearing is made of AISI 440C.
