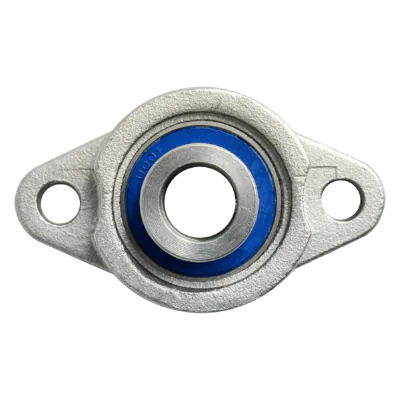

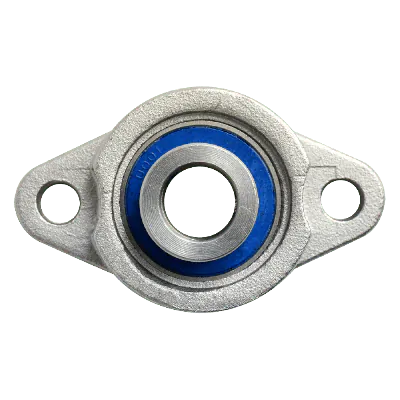

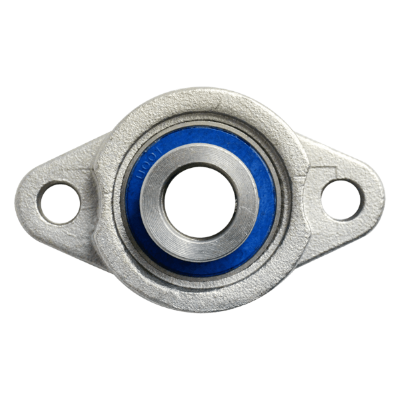

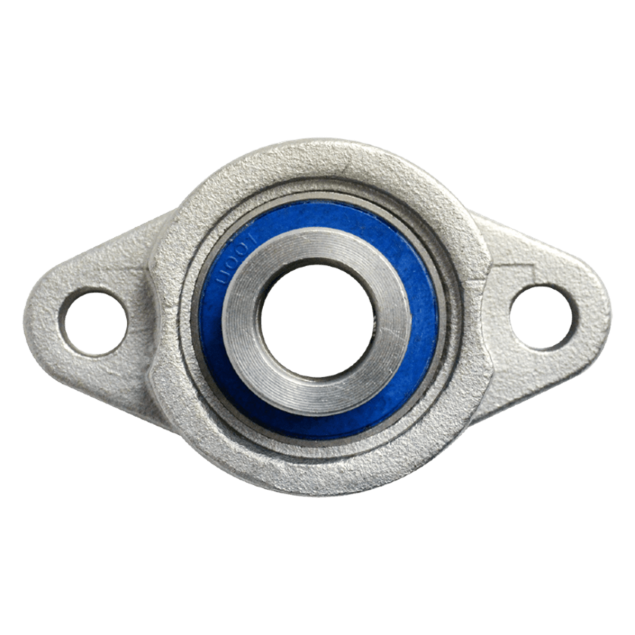

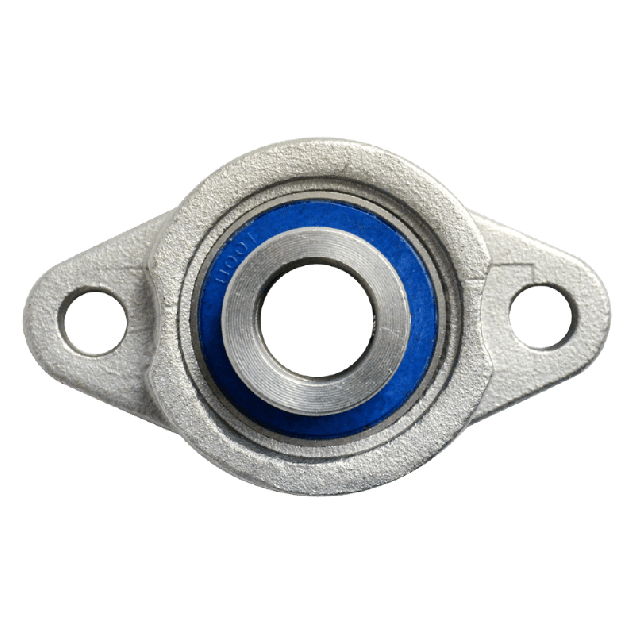

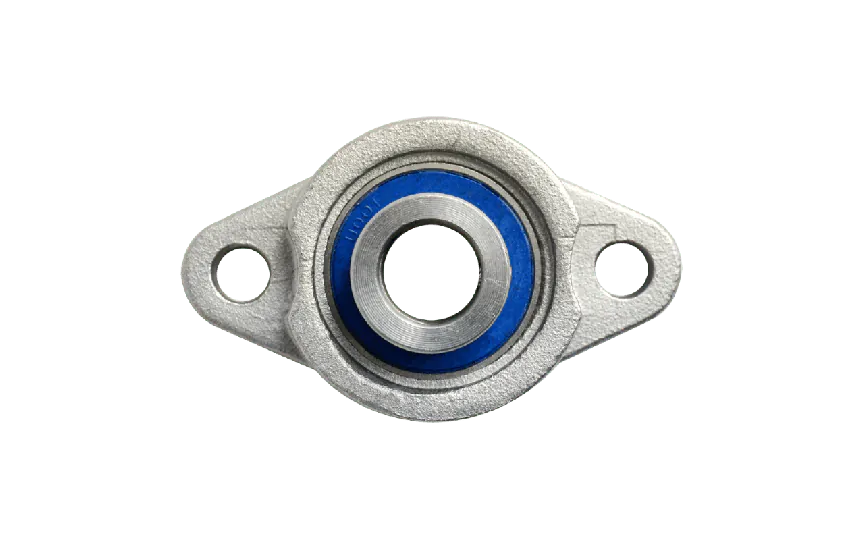

Mini flange bearing MUFL Ø12, eccentric collar, stainless steel
MUFL001The MUFL Ø12 mini stainless steel flange bearing, a bearing designed for the food industry and other challenging environments. Built with durability and hygiene in mind, this bearing ensures optimal performance and long-lasting reliability
Specifications
Product description
Downloads
€26.41
Made to order
Expected shipment: 06-01-2025
More Information
Bolt size
M6
Grease nipple
None

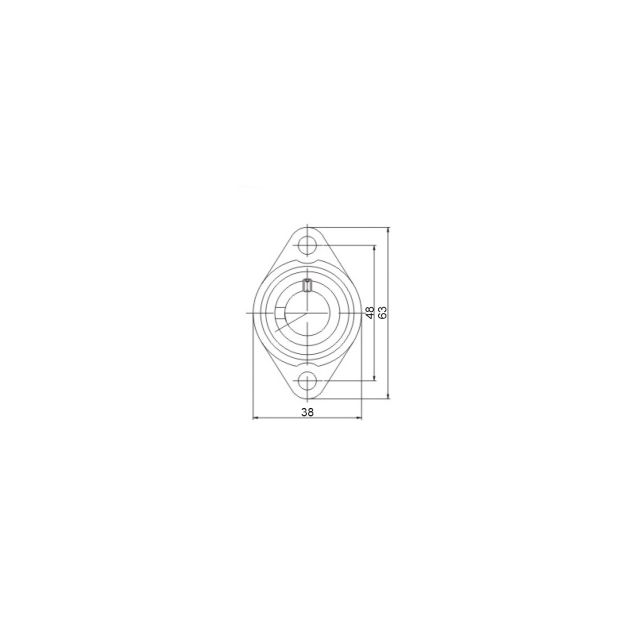

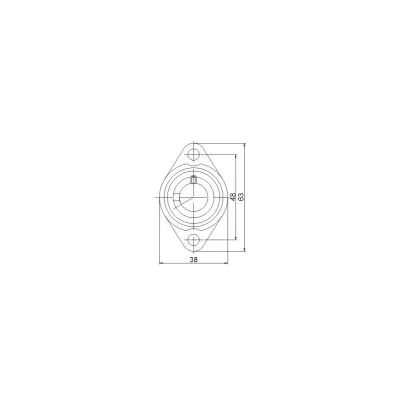

Hole distance (mm)
48
Shaft size (mm)
Ø12
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
MUFL
Mounting
Eccentric
Housing type
2-bolt flange bearing
House material
Stainless steel
Description
Key features:
- Extra narrow design: The mini stainless steel bearing is specifically engineered to provide a compact and space-saving solution for various applications.
- Hygienic design: This bearing meets strict hygiene standards and is ideal for environments with high demands on cleanliness.
- Eccentric collar lock: The included eccentric collar lock ensures secure and easy installation, providing excellent stability for your machinery or equipment.
- Surface coating-free: The NG MUFL bearing requires no additional surface coating, saving you time and effort during installation.
Materials:
- Stainless steel housing: Crafted from AISI 304 stainless steel.
- Stainless steel bearing: AISI 440C stainless steel bearing.
