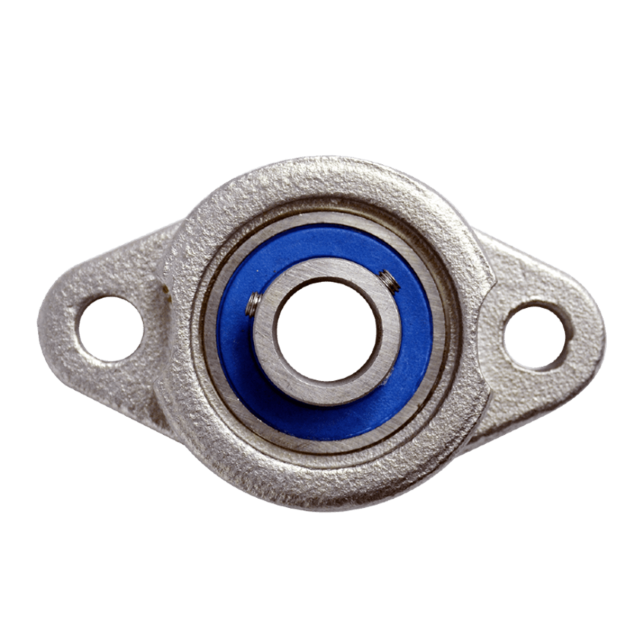

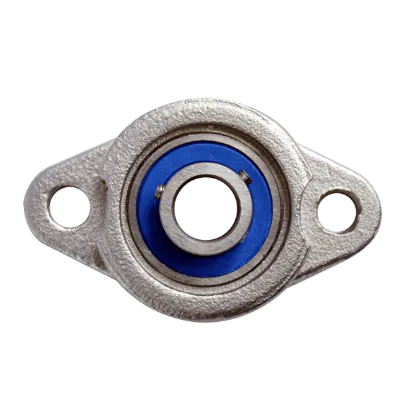

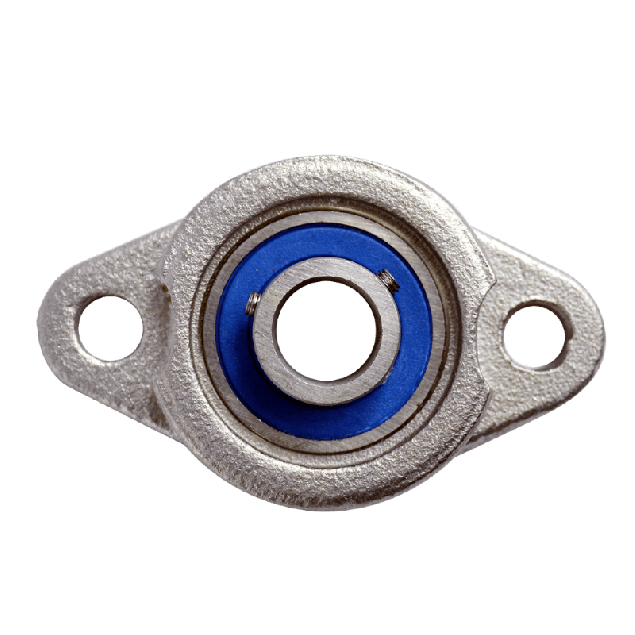

Description
Key features:
- Extra narrow design: The mini stainless steel flange bearing is compact and space-saving, making it suitable for applications with limited space constraints.
- Hygienic design: The bearing is constructed with materials and features that meet the stringent requirements of the food industry, ensuring cleanliness and preventing contamination.
- Set screw lock: The set screw lock mechanism ensures a secure and reliable fit, minimizing any potential for slippage or misalignment during operation.
- NBR sealings: The inclusion of NBR sealings provides protection against moisture, dust, and other contaminants, extending the lifespan of the bearing and enhancing its performance.
Materials:
- Stainless steel housing: The housing of the bearing is constructed from AISI 304 stainless steel.
- Stainless steel bearing: The bearings are made from AISI 440C stainless steel, known for its hardness.
Specifications
Grease nipple
None
Hole distance (mm)
45
Shaft size (mm)
Ø10
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
MKFL
Mounting
Set screw
Housing type
2-bolt flange bearing
House material
Stainless steel
Downloads
Foreign trade
HS-Code
84832000
ERP net weight (Kg)
0.06
Country of origin
CHN
