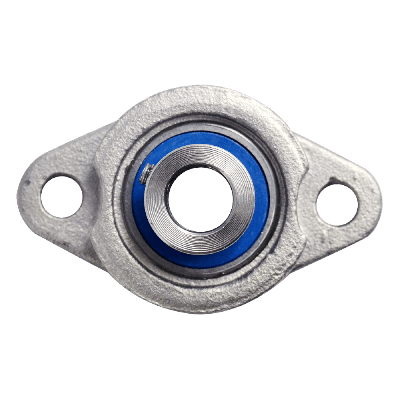

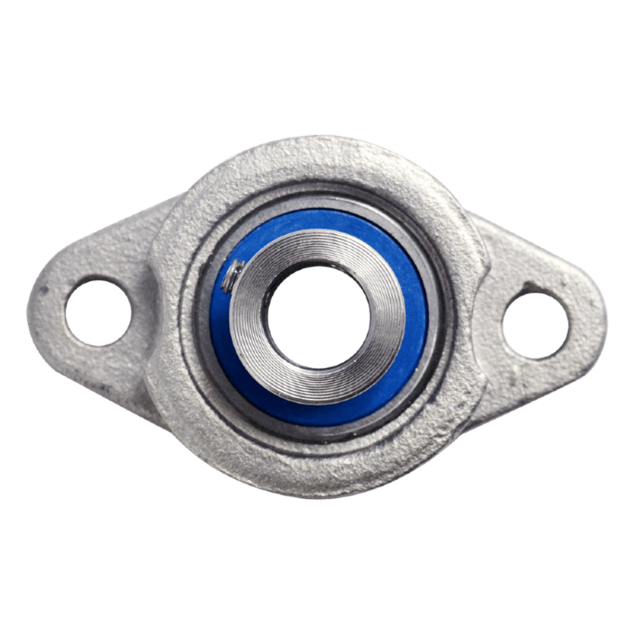

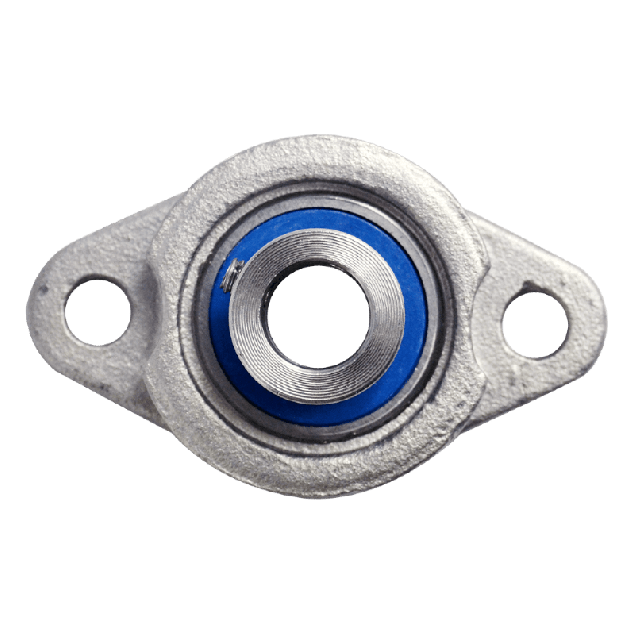

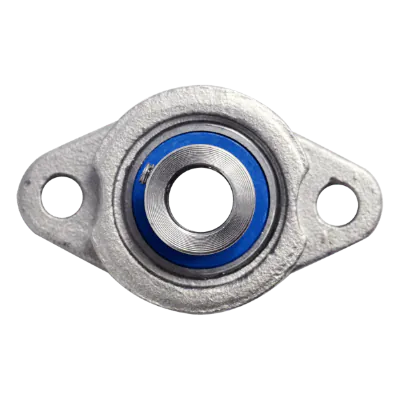

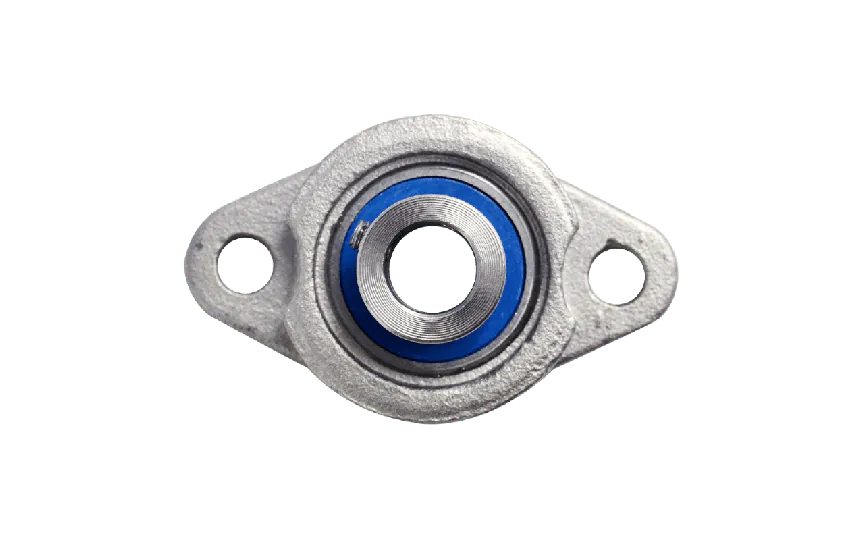

Mini flange bearing MUFL Ø10, eccentric collar, stainless steel
MUFL000The MUFL Ø10 mini stainless steel flange bearing, is a high-quality bearing designed for precision and durability in demanding environments. With its hygienic design and stainless steel construction, this mini bearing is perfect for use in the food industry and other industries where cleanliness is crucial
Specifications
Product description
Downloads
€21.18
Made to order
Expected shipment: 06-01-2025
More Information
Bolt size
M6
Grease nipple
None
Hole distance (mm)
45
Shaft size (mm)
Ø10
Cover
Open
Sealing
Nitrile rubber (NBR)
Bearing material
Stainless steel
Model
MUFL
Mounting
Eccentric
Housing type
2-bolt flange bearing
House material
Stainless steel
Description
Key features:
- Extra narrow design: The mini stainless steel flange bearing offers a compact and space-saving solution, ideal for applications with limited space requirements.
- Eccentric collar lock: The bearing is equipped with an eccentric collar lock mechanism, ensuring secure and reliable shaft attachment.
- No surface coating required: With no need for additional surface coatings, this bearing simplifies maintenance and ensures long-lasting performance.
Materials:
- Stainless steel housing: The housing is constructed from AISI 304 stainless steel.
- Stainless steel bearing: The bearings themselves are made of AISI 440C stainless steel.
