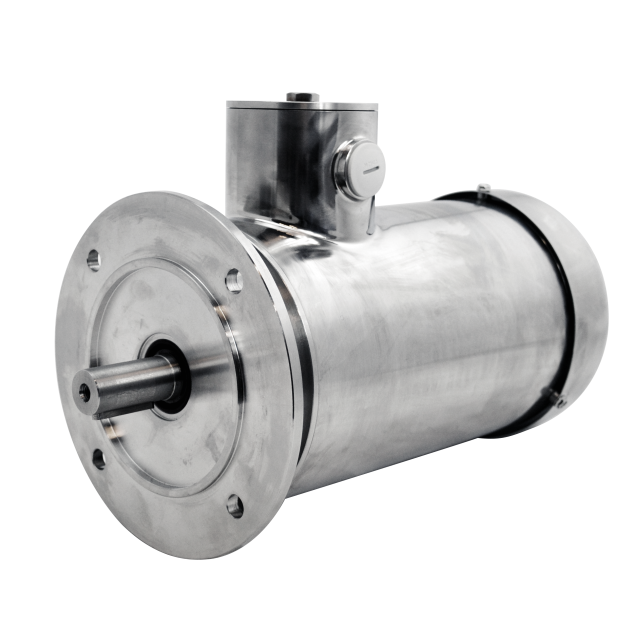

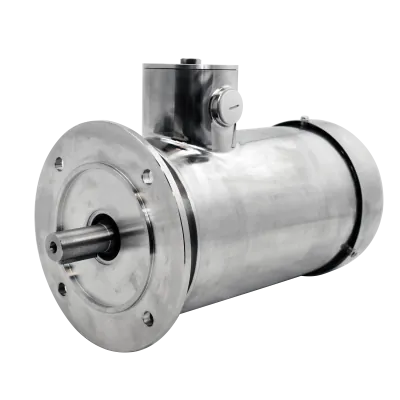

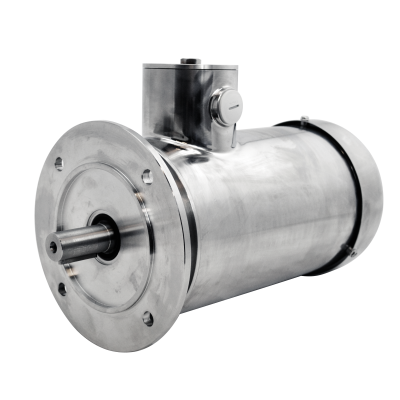

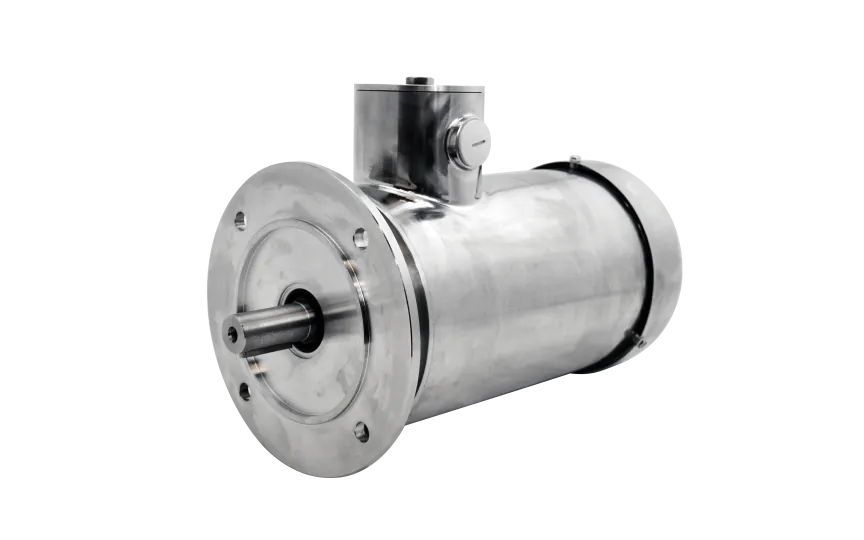

Marlin AC motor TEFC90S-2B5, 1.50kW, 2800RPM, 230/400V, 50Hz, IP66, stainless steel
TEFC90S-2B5The Marlin TEFC90S-2B5 AC Motor, is a high-performance motor engineered for demanding industrial environments. Constructed from stainless steel, it offers both strength and cleanliness, meeting the IP66 rating for dust and water resistance.
Specifications
Product description
Downloads
€1,284.00
In stock
Expected shipment: 18-03-2025
More Information
IP classification
IP 66
Model
TEFC 90S-2B5
Speed (RPM)
2800
Rated output (kW)
1.5
Efficiency (% FL)
84.2
Voltage connection (Δ/Y)
230/400
Rated current at voltage
5.28/3.05
Nominal torque (Nm)
4.98
Start current ratio (IA/IN)
8.4
Mounting
B5
IEC norm
90
BCD
115
Poles
2
Certifications
UL, cURus
Efficiency standard
IE3
Shaft diameter (mm)
Ø24
Cooling
TEFC
Thermal protection
PTC
Description
Key features:
- Clean-in-place (CIP): Designed to facilitate easy and efficient cleaning.
- IP66 rating: Provides protection against dust and water ingress.
- Totally enclosed fan cooled (TEFC): The motor's enclosure design prevents contaminants from entering, safeguarding internal components and extending the motor's lifespan.
- High performance: With a power output of 1.50kW and a rapid rotation speed of 2800RPM, this motor delivers performance to meet demanding operational needs.
- Energy efficiency: Compliant with IE3 standards, this motor ensures optimal energy usage.
Specifications:
- Material: Constructed with EN 1.4301/AISI 304.
- Hygienic design: Complies with EN 1672-2 standards.
- Certification: Holds cURus certification and is UL approved.
