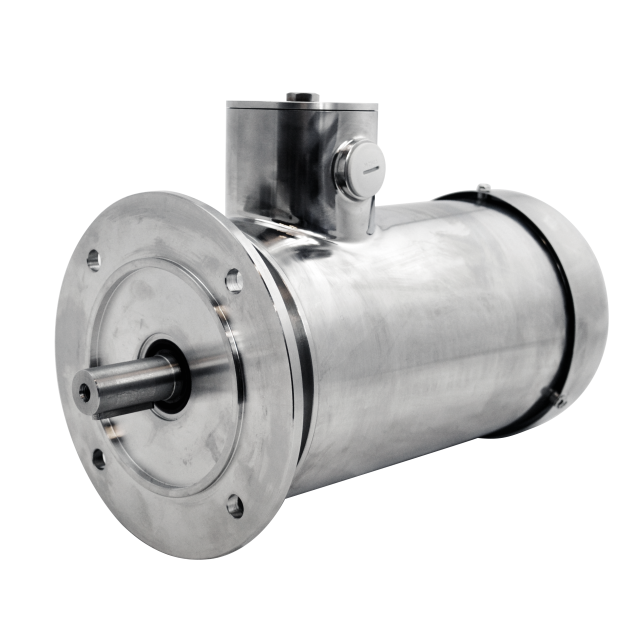

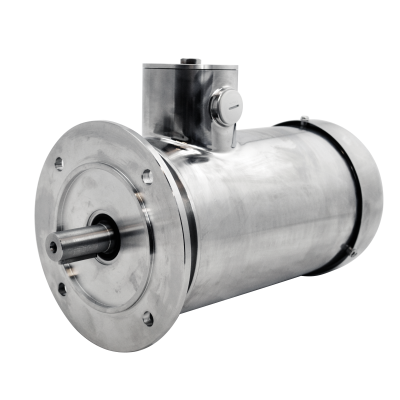

Marlin AC motor TEFC90L-6B5, 1.10kW, 900RPM, 230/400V, 50Hz, IP66, stainless steel

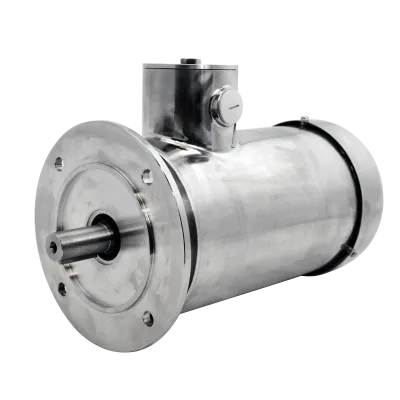

TEFC90L-6B5The Marlin AC motor TEFC90L-6B5 is a stainless steel IEC motor designed for hygienic and demanding industrial environments. With a rated output of 1.10 kW, a nominal torque of 11.06 Nm, and a speed of 900 RPM (6-pole), it ensures reliable and consistent performance in applications that require both power and durability.
Constructed from EN 1.4301/AISI 304 stainless steel and compliant with EN 1672-2 hygienic design standards, the motor offers excellent corrosion resistance and suitability for Clean-in-Place (CIP) cleaning processes. Its IP66 rating provides full protection against dust and high-pressure water jets, making it ideal for industries with strict hygiene requirements such as food, beverage, and pharmaceuticals.
The motor features a Totally Enclosed Fan-Cooled (TEFC) cooling system, which prevents ingress of contaminants and extends operational life. Designed with a B5 flange mounting, international certifications including UL and cURus, and an IE3 efficiency rating, this motor combines hygiene, safety, and energy efficiency.
Made to order
Expected shipment:
More Information
Description
Key Features
-
Clean-in-Place (CIP) design – allows thorough cleaning without dismantling, ensuring hygienic operation.
-
IP66 protection – dust-tight and resistant to high-pressure water jets.
-
TEFC cooling – sealed fan-cooled design prevents contamination and increases reliability.
-
Robust performance – 1.10 kW power, 900 RPM, and 11.06 Nm torque.
-
IE3 efficiency class (82.7%) – reduces energy consumption and operational costs.
-
B5 flange mounting – standardized for secure and flexible integration.
-
UL and cURus certified – globally recognized quality and safety compliance
