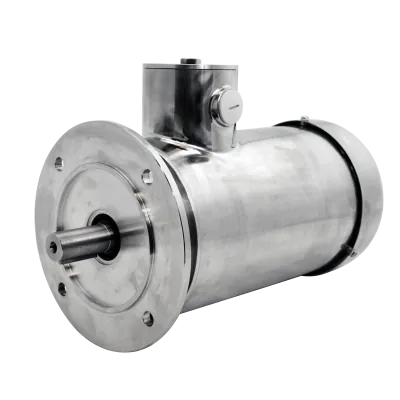

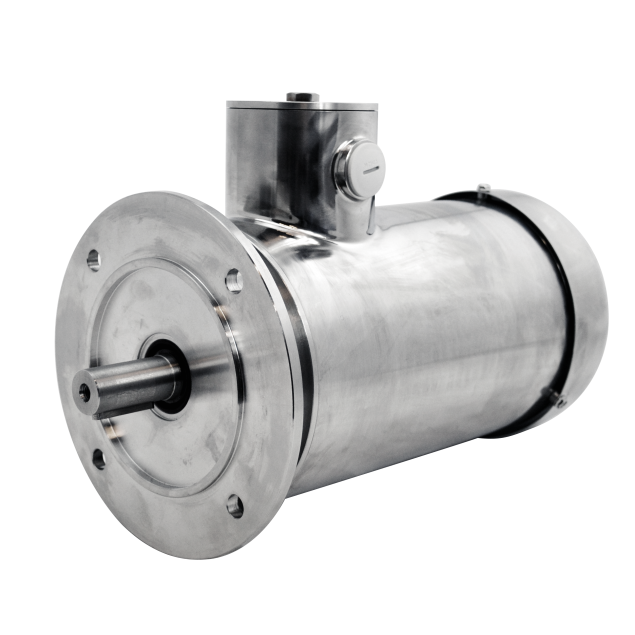

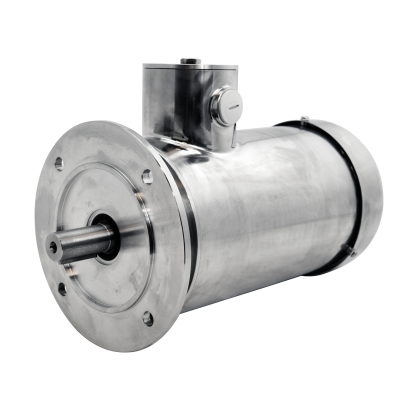

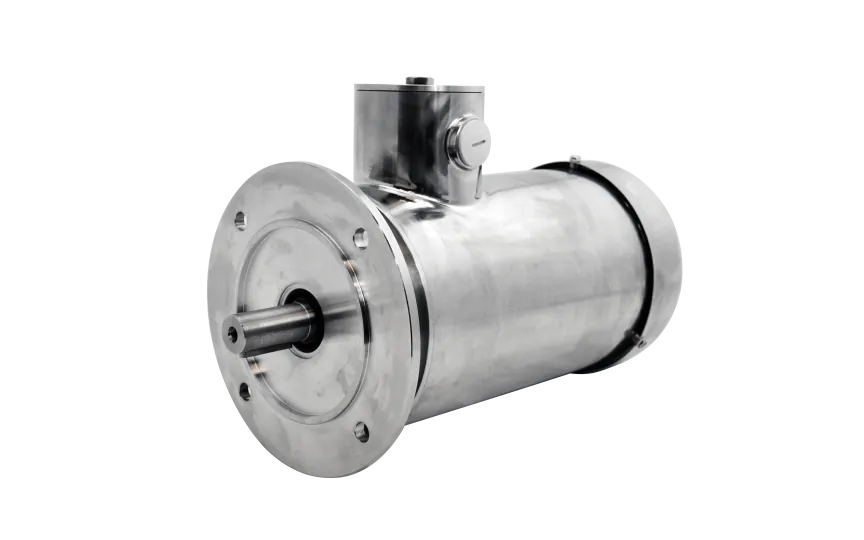

Marlin AC motor TEFC90L-2B5, 2.20kW, 2840RPM, 230/400V, 50Hz, IP66, stainless steel
TEFC90L-2B5The Marlin TEFC90L-2B5 AC Motor, is constructed with stainless steel. This motor delivers a potent 2.20kW output at a swift 2840RPM, ensuring high-performance operation. It operates seamlessly with 230/400V power supplies at a 50Hz frequency and boasts an IP66 rating, signifying strong protection against dust and water.
Specifications
Product description
Downloads
€1,548.00
In stock
Expected shipment: 24-02-2025
More Information
IP classification
IP 66
Model
TEFC 90L-2B5
Speed (RPM)
2800
Rated output (kW)
2.2
Efficiency (% FL)
85.9
Voltage connection (Δ/Y)
230/400
Rated current at voltage
7.36/4.25
Nominal torque (Nm)
7.41
Start current ratio (IA/IN)
7.1
Mounting
B5
IEC norm
90
BCD
115
Poles
2
Certifications
UL, cURus
Efficiency standard
IE3
Shaft diameter (mm)
Ø24
Cooling
TEFC
Thermal protection
PTC
Description
Key features:
- Clean-in-Place (CIP): Effortlessly maintain the motor's hygiene with the CIP feature.
- IP66 rating: Rest easy knowing that the motor is fully protected against dust and powerful jets of wate.
- TEFC (Totally Enclosed Fan Cooled): This innovative design prevents external elements from entering the motor.
- 2.20kW 2840RPM: A robust power output of 2.20kW.
- B5 flange: The B5 flange configuration offers easy installation and compatibility with various industrial setups.
- Embrace energy efficiency with the IE3 classification.
Specifications:
- Material: EN 1.4301/AISI 304, EN 1672-2
- Certification: cURus certification and UL approved.
Downloads
Kaiser Motoren stainless steel motors operating instructions
Kaiser Motoren stainless steel motors operating instructions.pdf
Download file
