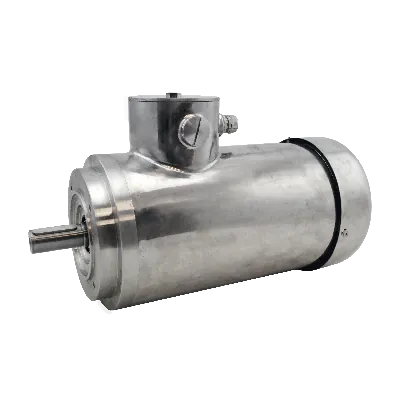

Marlin AC motor TEFC80B-4, 0.75kW, 1450RPM, 230/400V, 50Hz, IP66, stainless steel
TEFC80B-4The stainless steel AC-motor is designed to meet the stringent requirements of the food industry and other demanding applications. Crafted from EN 1.4301/AISI 304 and EN 1672-2 materials, this motor offers material resistance, ensuring reliability and longevity in even harsh environments.
Specifications
Product description
Downloads
€1,573.00
In stock
Expected shipment: 21-03-2025
More Information
IP classification
IP 66
Model
TENV 80B-4
Speed (RPM)
1400
Rated output (kW)
0.75
Efficiency (% FL)
85.7
Voltage connection (Δ/Y)
230/400
Rated current at voltage
3.08/1.78
Nominal torque (Nm)
4.9
Start current ratio (IA/IN)
7
Mounting
B14
IEC norm
80
BCD
100
Poles
4
Certifications
UL, cURus
Efficiency standard
IE3
Shaft diameter (mm)
Ø19
Cooling
TEFC
Thermal protection
PTC
Description
Key features:
- Clean-in-Place (CIP) Capability: Allows for easy and efficient cleaning.
- IP66 rating: Provides complete against dust and powerful water jets.
- Totally Enclosed Fan Cooled (TEFC) Design: Ensures protection against contaminants.
- High performance: With a power output of 0.75kW and operating at 1450RPM.
- B14 flange: Offers versatile mounting options,.
- IE3 efficiency rating: Guarantees energy savings and environmentally-friendly operation.
Specifications:
- Material: EN 1.4301/AISI 304, EN 1672-2.
- Certification: cURus and UL Approved.
