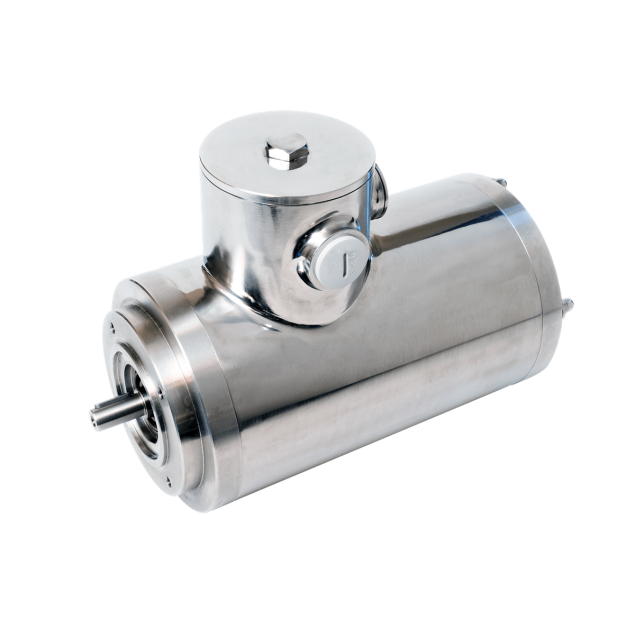

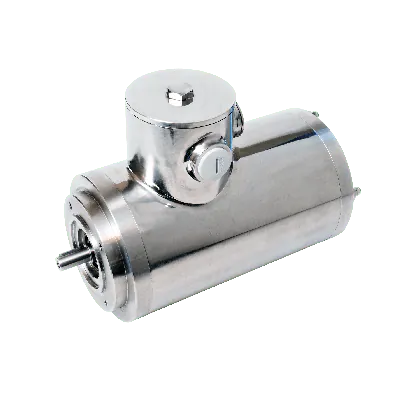

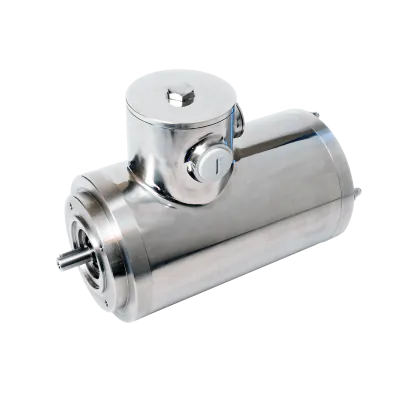

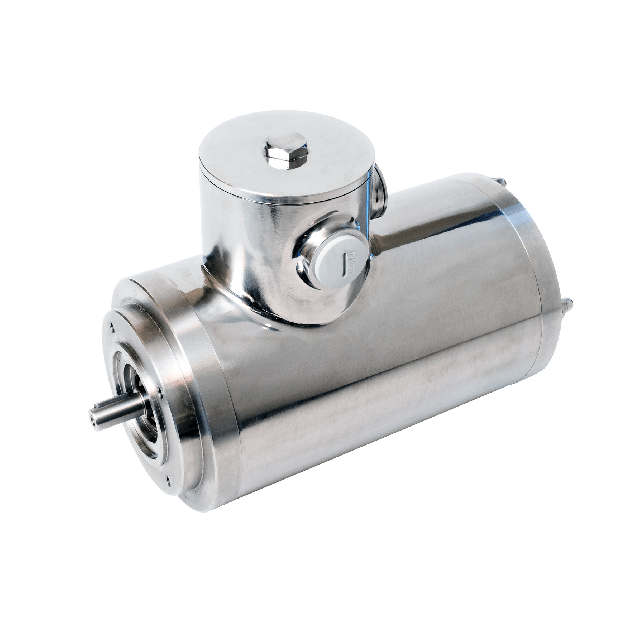

Marlin AC motor TENV80A-4FDW8, prepared for brake, 0.55kW, 1400RPM, 230/400V, 50Hz, IP66, stainless steel

TENV80A-4FDW8

The Marlin TENV80A-4FDW8 AC motor is constructed from stainless steel and designed to meet industrial requirements. It delivers a power output of 0.55kW at a constant speed of 1400RPM and is compatible with 230/400V power supplies at the standard 50Hz frequency. With its IP66 rating, the motor is protected against dust and water.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment: 22-04-2025

More Information

IP classification

IP 66

Model

TENV 80A-4FDW8

Speed (RPM)

1400

Rated output (kW)

0.55

Efficiency (% FL)

Voltage connection (Δ/Y)

230/400

Rated current at voltage

2.35/1.35

Nominal torque (Nm)

3.68

Start current ratio (IA/IN)

5.7

Mounting

B14

IEC norm

BCD

100

Poles

Certifications

UL, cURus

Efficiency standard

IE3

Shaft diameter (mm)

Ø19

Cooling

TENV

Thermal protection

PTC

Description

Key features:

Clean-in-Place (CIP) Design: Facilitates easy cleaning and maintenance.
IP66 Rating: Provides protection against dust and water, making it suitable for use in demanding and harsh industrial environments.
Totally Enclosed Non-Ventilated (TENV) Construction: Prevents the ingress of contaminants.
0.55kW power: Offers a robust power output to drive your machinery efficiently and effectively.
1400RPM speed: Provides a precise rotational speed for consistent and controlled performance.
B14 flange: Enables straightforward and secure mounting for seamless integration into your equipment.

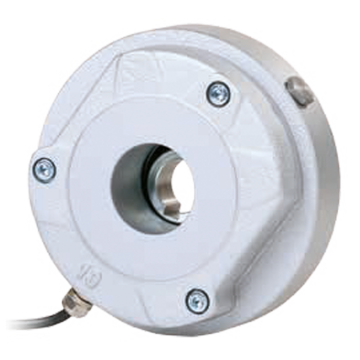

Prepared for brake FDW8: Allows for easy integration of a brake system.

Specifications:
