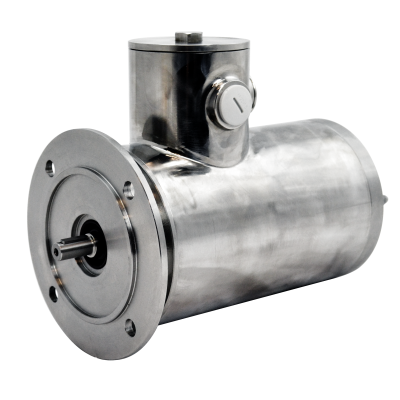

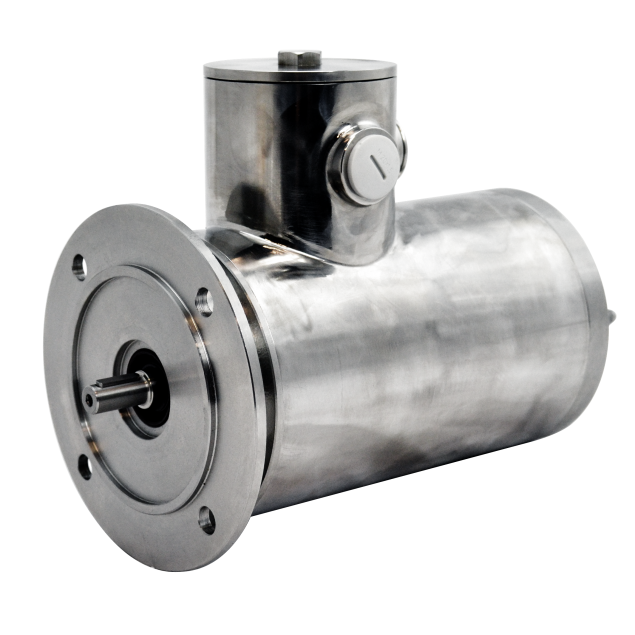

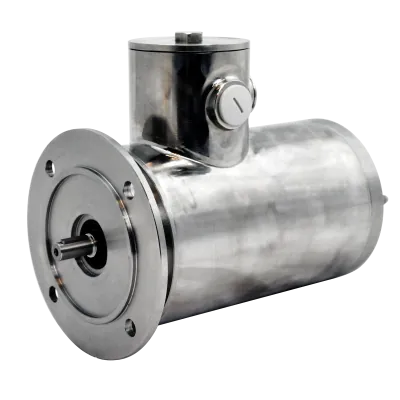

Marlin AC motor TENV63B-4B5, 0.18kW, 1 400RPM, 230/400V, 50Hz, IP66, stainless steel
TENV63B-4B5The Marlin TENV63B-4B5 AC motor, is crafted from stainless steel, this motor is designed to provide a steady 0.18kW power output at 1400RPM. It operates smoothly on 230/400V power supplies at the standard frequency of 50Hz. With an IP66 rating, it ensures protection against dust and water ingress.
Specifications
Product description
Downloads
€745.00
In stock
Expected shipment: 24-02-2025
More Information
IP classification
IP 66
Model
TENV 63B-4B5
Speed (RPM)
1400
Rated output (kW)
0.18
Efficiency (% FL)
71
Voltage connection (Δ/Y)
230/400
Rated current at voltage
0.95/0.55
Nominal torque (Nm)
1.25
Start current ratio (IA/IN)
3.8
Mounting
B5
IEC norm
63
BCD
75
Poles
4
Certifications
UL, cURus
Efficiency standard
IE3
Shaft diameter (mm)
Ø11
Cooling
TEFC
Thermal protection
PTC
Description
Key features:
- Clean-in-Place (CIP) Design: Facilitates easy and thorough cleaning, maintaining impeccable hygiene standards.
- IP66 rating: Guarantees protection against dust and water ingress, safeguarding the motor's internal components from potential damage.
- Totally Enclosed Non-Ventilated (TENV) Structure: Provides enhanced protection against external elements.
- Robust power output: Boasting a 0.18kW capacity, this motor delivers consistent and reliable performance.
- Efficient 1400RPM: Offers optimal speed to ensure smooth and efficient operation in your application.
- B5 flange: Easy and secure installation.
Specifications:
- Material: Constructed from EN 1.4301/AISI 304 , and EN 1672-2 compliant.
- IP69K Compatible: When paired with the correct cables and cable gland and mounted on a gearbox, this motor meets the rigorous IP69K standard for high-pressure washdowns.
- Certifications: cURus certification and UL approval signify compliance.
