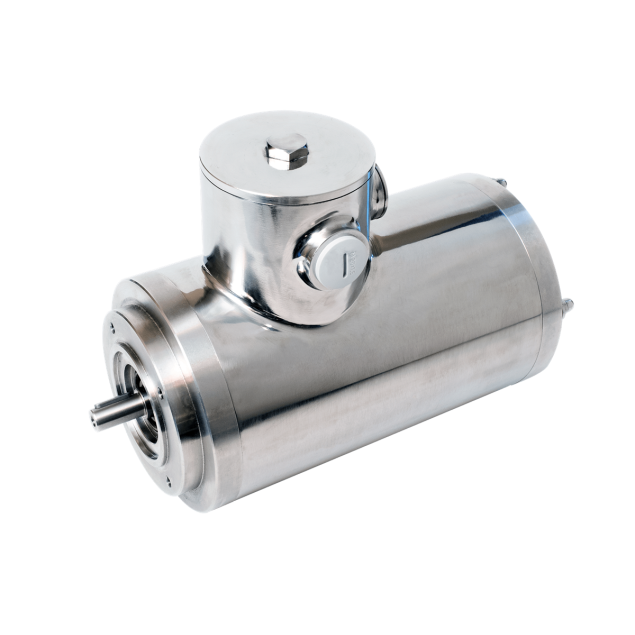

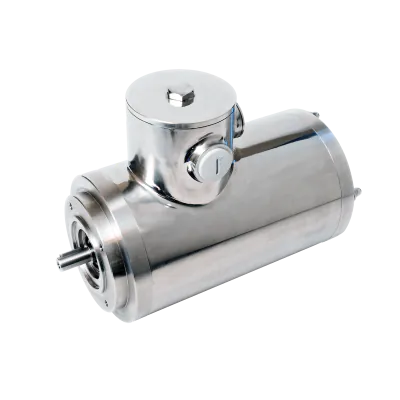

Marlin AC motor TENV80A-4B34, 0.55kW, 1400RPM, 230/400V, 50Hz, IP66, stainless steel
TENV80A-4B34
Specifications
Product description
Downloads
€968.35
Made to order
Expected shipment: 20-12-2024
More Information
IP classification
IP 66
Producer
Kaiser motoren
Model
TENV 80A-4B34
Speed (RPM)
1400
Rated output (kW)
0.55
Efficiency (% FL)
82
Voltage connection (Δ/Y)
230/400
Rated current at voltage
2.35/1.35
Nominal torque (Nm)
3.68
Start current ratio (IA/IN)
5.7
Mounting
B34
IEC norm
80
BCD
100
Certifications
UL, cURus
Efficiency standard
IE4
Shaft diameter (mm)
Ø19
Cooling
TENV
Description
Key features:
- Clean-in-place design ensures easy and efficient cleaning.
- IP66 rating guarantees protection against dust and water, safeguarding the motor from potential hazards.
- Totally Enclosed, Non-Ventilated (TENV) construction prevents external contamination and extends motor life.
- Power output of 0.55kW ensures high-performance operation.
- Efficient 1400RPM motor speed provides smooth and consistent performance across a range of applications.
- B34 flange facilitates easy installation, promoting seamless integration with gearboxes and equipment.
Specifications:
- Material: Constructed from quality EN 1.4301/AISI 304 and EN 1672-2.
- Certification: cURus certification and UL approval.
Downloads
Kaiser Motoren stainless steel motors operating instructions
Kaiser Motoren stainless steel motors operating instructions.pdf
Download file
