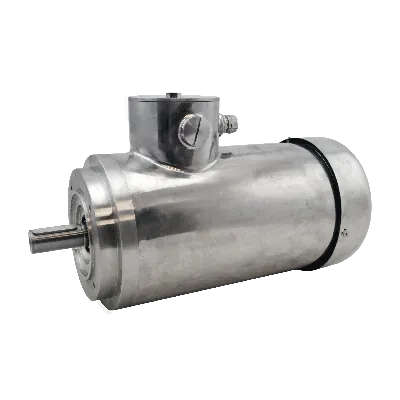

Marlin AC motor TEFC132SB-2, 7.5kW, 2800RPM, 230/400V, 50Hz, IP66, stainless steel
TEFC132SB-2The Marlin TEFC132SB-2 AC Motor, a stainless steel motor ideal for demanding industrial environments. This model boasts a substantial 7.5kW power output and operates at a swift 2800RPM, ensuring optimal efficiency. Designed to meet IP66 standards, it is well-suited for applications requiring a hygienic and robust motor solution.
Specifications
Product description
Downloads
€3,335.25
Made to order
Expected shipment: 14-02-2025
More Information
IP classification
IP 66
Producer
Kaiser motoren
Model
TEFC 132SB-2
Speed (RPM)
2800
Rated output (kW)
7.5
Efficiency (% FL)
90.5
Voltage connection (Δ/Y)
400/690
Rated current at voltage
13.15/7.59
Nominal torque (Nm)
24.43
Start current ratio (IA/IN)
13.14
Mounting
B14
Poles
2
Certifications
UL, cURus
Efficiency standard
IE3
Shaft diameter (mm)
Ø38
Cooling
TEFC
Description
Key features:
- Clean-in-Place (CIP) Capability: Facilitates easy and efficient cleaning, maintaining hygiene standards in food processing and industrial settings.
- IP66 rating: Offers protection against dust and powerful jets of water, guaranteeing reliable operation even in harsh conditions.
- TEFC (Totally Enclosed Fan Cooled) Design: Ensures enhanced protection against contaminants.
- 7.5kW power: Delivers substantial power.
- 2800RPM: Provides smooth and consistent rotational speed.
- B14 flange: Offers a robust mounting option for seamless integration with various machinery setups.
- IE3 efficiency rating: Ensures energy-efficient operation, reducing power consumption.
Specifications:
- Material: EN 1.4301/AISI 304, EN 1672-2.
- Certification: cURus certified and UL approved.
Downloads
Kaiser Motoren stainless steel motors operating instructions
Kaiser Motoren stainless steel motors operating instructions.pdf
Download file
