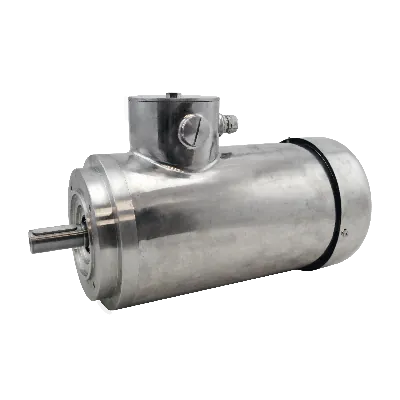

Marlin AC motor TEFC112M-4, 4,00kW, 1400RPM, 400/690V, 50Hz, IP66, stainless steel
TEFC112M-4
Specifications
Product description
Downloads
€3,194.99
Made to order
Expected shipment: 19-12-2024
More Information
IP classification
IP 66
Producer
Kaiser motoren
Model
TEFC 112M-4
Speed (RPM)
1400
Rated output (kW)
4
Efficiency (% FL)
88.6
Voltage connection (Δ/Y)
400/690
Rated current at voltage
8.35/4.82
Nominal torque (Nm)
26.02
Start current ratio (IA/IN)
5.8
Mounting
B14
IEC norm
112
BCD
130
Poles
4
Certifications
UL, cURus
Efficiency standard
IE3
Shaft diameter (mm)
Ø28
Cooling
TEFC
Description
Key features:
- Clean-in-Place (CIP) Capability: Facilitates easy and efficient cleaning without the need for disassembly.
- IP66 rating: Provides protection against dust and powerful jets of water.
- TEFC (Totally Enclosed Fan Cooled): The motor's robust enclosure prevents contaminants from entering.
- High power: With a power rating of 4.00kW, this motor delivers ample strength to drive heavy-duty machinery.
- Optimal speed: Running at 1400RPM, the motor maintains a consistent and controlled performance.
- B14 flange: The B14 mounting flange design allows for easy installation and compatibility with various equipment types.
- IE3 efficiency: The motor boasts high energy efficiency, reducing power consumption and operational costs.
Specifications:
- Material: Constructed from EN 1.4301/AISI 304 and EN 1672-2 compliant materials.
- Certification: Holds cURus certification and is UL approved.
Downloads
Kaiser Motoren stainless steel motors operating instructions
Kaiser Motoren stainless steel motors operating instructions.pdf
Download file
