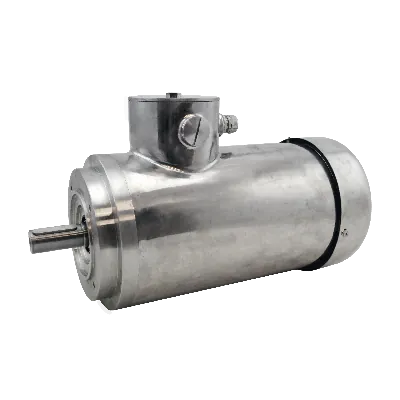

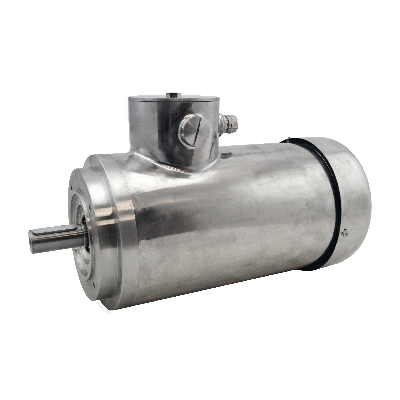

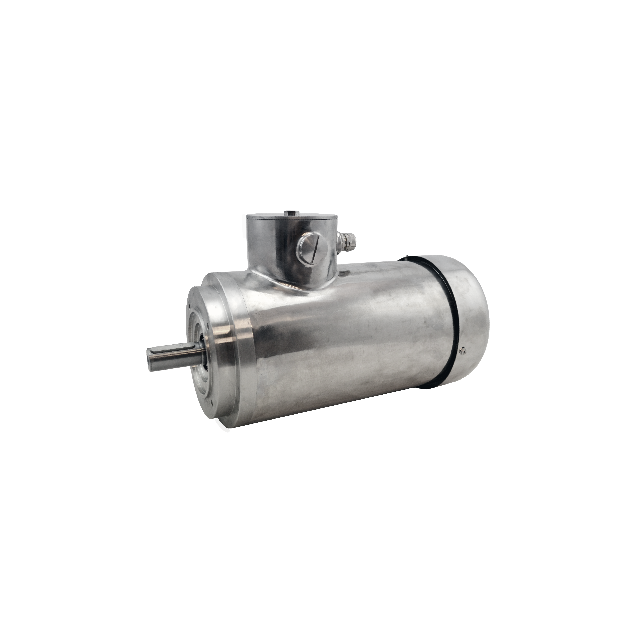

Marlin AC motor TEFC100LB-4, 3.00kW, 1400RPM, 230/400V, 50Hz, IP66, stainless steel
TEFC100LB-4The Marlin TEFC100LB-4 is a hygienic IEC-standard AC motor delivering 3.0 kW at 1455 RPM (4-pole). Designed for tough washdown environments, the motor is housed in stainless steel EN 1.4301 and is equipped with IP66 ingress protection, making it highly resistant to water, chemicals, and cleaning agents.
This model features Totally Enclosed Fan Cooled (TEFC) construction, PTC thermal protection, a B14 flange (130 mm BCD), and a Ø28 mm shaft for integration into hygienic transmission systems. With a pull-out torque of 3.8 Mₙ, break-away torque of 3.4 Nm, and IE3 energy efficiency (87.7%), the motor is engineered for demanding continuous-duty (S1) operation where hygiene and durability are critical.
Typical applications:
-
Hygienic packaging and conveyor systems
-
Pharmaceutical processing equipment
-
Food-grade mixers and handling units
-
Stainless steel drive solutions for wet zones
In stock
Expected shipment:
More Information
Description
Key features:
- Clean-in-Place (CIP) Capabilities: The motor's design allows for easy and efficient cleaning without the need for disassembly.
- IP66 rating: With a high IP66 rating, the motor is protected against dust and water ingress.
- Totally Enclosed Fan Cooled (TEFC): The TEFC enclosure provides protection against external elements.
- High power output: Delivering 3.00kW of power.
- Smooth and steady performance: Operating at 1400RPM, the motor guarantees a consistent and stable output.
- B14 flange mounting: The B14 flange allows for easy installation and integration into various systems.
Specifications:
- Material: Constructed from EN 1.4301/AISI 304 and EN 1672-2.
- Energy efficiency: Boasting an IE3 energy efficiency rating.
- Certifications: The motor holds cURus certification and is UL approved.
