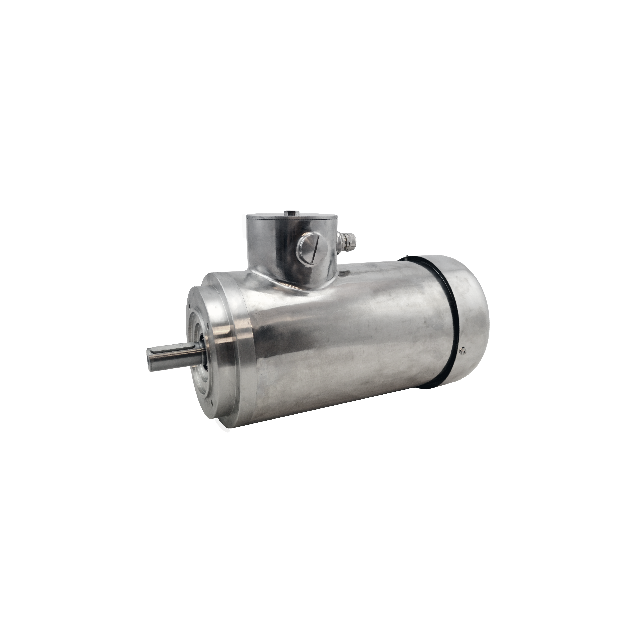

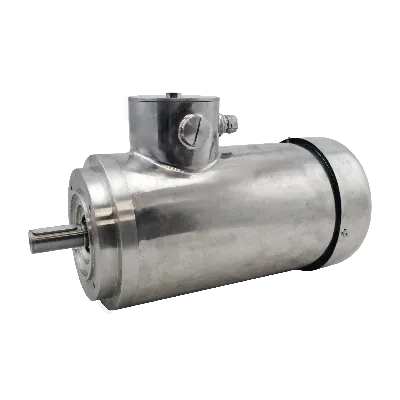

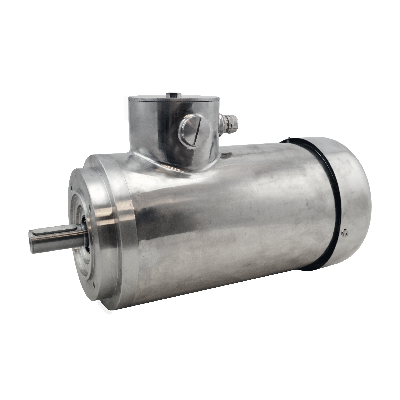

Marlin AC motor TEFC90L-2, 2.20kW, 2840RPM, 230/400V, 50Hz, IP66, stainless steel
TEFC90L-2The Marlin TEFC90L-2 AC motor, a motor engineered for demanding industrial environments. Crafted from stainless steel, it combines robustness with hygiene. With a potent 2.20kW output and rapid 2840RPM, this motor guarantees peak efficiency. Designed to operate seamlessly on 230/400V power sources at a 50Hz frequency, it holds an IP66 rating, safeguarding against dust and water ingress.
Specifications
Product description
Downloads
€1,502.81
Made to order
Expected shipment: 06-01-2025
More Information
IP classification
IP 66
Producer
Kaiser motoren
Model
TEFC 90L-2
Speed (RPM)
2800
Rated output (kW)
2.2
Efficiency (% FL)
85.9
Voltage connection (Δ/Y)
230/400
Rated current at voltage
7.36/4.25
Nominal torque (Nm)
7.41
Start current ratio (IA/IN)
7.1
Mounting
B14
IEC norm
90
BCD
115
Poles
2
Certifications
UL, cURus
Efficiency standard
IE3
Shaft diameter (mm)
Ø24
Cooling
TEFC
Thermal protection
PTC
Description
Key features:
- Clean-in-Place (CIP): The motor's design allows for easy and efficient cleaning, ensuring hygienic standards are maintained without disassembly.
- IP66 rating: The motor is fully protected against dust ingress and powerful water jets.
- TEFC (Totally Enclosed Fan-Cooled): The enclosed design prevents contaminants from entering the motor.
- High Power Output: With a 2.20kW power rating and a 2840RPM speed.
- B14 flange: The B14 flange allows for straightforward installation.
- High efficiency: The motor boasts an IE3 efficiency rating.
Specifications:
- Materials: Constructed from EN 1.4301/AISI 304 and EN 1672-2 compliant.
- Certification: The motor holds cURus certification and is UL approved.
