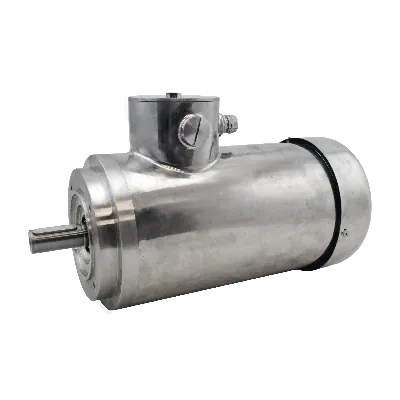

Marlin AC motor TEFC100LA-4, 2.20 kW, 1400RPM, 230/400V, 50Hz, IP66, stainless steel
TEFC100LA-4
Specifications
Product description
Downloads
€2,016.32
Made to order
Expected shipment: 20-12-2024
More Information
IP classification
IP 66
Producer
Kaiser motoren
Model
TEFC 100LA-4
Speed (RPM)
1400
Rated output (kW)
2.2
Efficiency (% FL)
86.7
Voltage connection (Δ/Y)
230/400
Rated current at voltage
7.62/4.40
Nominal torque (Nm)
14.59
Start current ratio (IA/IN)
6.9
Mounting
B14
IEC norm
100
BCD
130
Poles
4
Certifications
UL, cURus
Efficiency standard
IE3
Shaft diameter (mm)
Ø28
Cooling
TEFC
Thermal protection
PTC
Description
Key features:
- Clean-in-Place (CIP) Design: Facilitates easy and efficient cleaning.
- IP66 rating: Offers protection against dust and water ingress, ensuring reliable operation even in harsh environments.
- TEFC (Totally Enclosed Fan-Cooled) Construction: Guarantees optimal motor performance by preventing contaminants from entering the motor.
- 2.20kW power: Provides power to handle heavy-duty tasks efficiently and effectively.
- 1400RPM speed: Delivers a balanced rotational speed.
- B14 flange: Enables easy installation and compatibility with various equipment configurations.
- IE3 efficiency rating: Demonstrates high energy efficiency, resulting in lower operational costs and reduced environmental impact.
Specifications:
- Material: Constructed from EN 1.4301/AISI 304 and EN 1672-2.
- Certification: Holds cURus certification and UL approval.
Downloads
Kaiser Motoren stainless steel motors operating instructions
Kaiser Motoren stainless steel motors operating instructions.pdf
Download file
