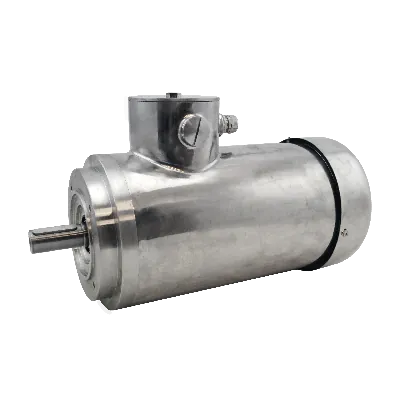

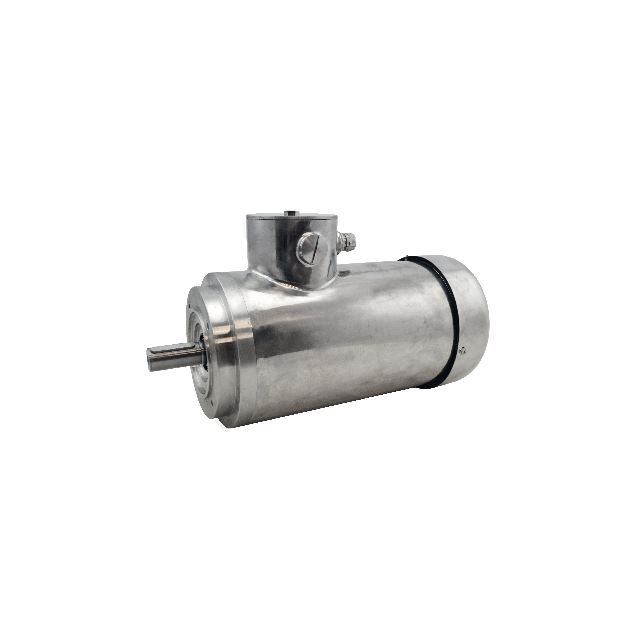

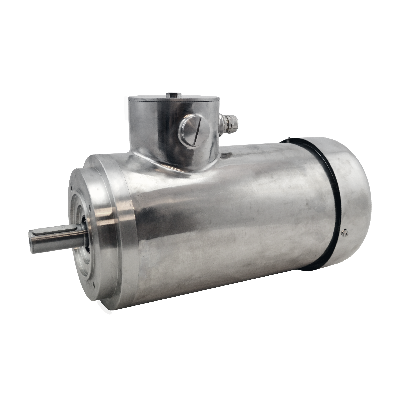

Marlin AC motor TEFC90L-4, 1.50kW, 1400RPM, 230/400V, 50Hz, IP66, stainless steel
TEFC90L-4The Marlin AC Motor TEFC 90L-4, 1.50kW, 1400RPM, 230/400V, 50Hz, IP66, Stainless Steel is designed for demanding industrial applications requiring resistance to harsh environments. This motor features a Totally Enclosed Fan Cooled (TEFC) enclosure and a 90L frame size. It delivers 1.50kW rated power at 1400 RPM, operating on a 230/400V, 50Hz power supply. The IP66 protection class ensures full protection against dust and strong water jets. It is equipped with a stainless steel hollow shaft and stainless steel housing, offering enhanced corrosion resistance for environments such as food processing and chemical industries.
Specifications
Product description
Downloads
€1,480.00
In stock
Expected shipment:
Loading...
More Information
IP classification
IP 66
Model
TEFC 90L-4
Speed (RPM)
1400
Rated output (kW)
1.5
Efficiency (% FL)
85.3
Voltage connection (Δ/Y)
230/400
Rated current at voltage
5.54/3.20
Nominal torque (Nm)
9.88
Start current ratio (IA/IN)
6.6
Mounting
B14
BCD
115
Poles
4
Efficiency standard
IE3
Shaft diameter (mm)
Ø24
Cooling
TEFC
HS-Code
85015220.000000
Description
Brand Overview: Marlin is a trusted manufacturer of high-performance electric motors, recognized for its robust engineering, premium materials, and commitment to innovation. Focused on meeting strict industrial standards, Marlin motors are tailored for demanding environments where hygiene, durability, and efficiency are paramount. Their stainless steel product line is designed specifically for washdown conditions often found in the food, pharmaceutical, and chemical industries.Key Features, Benefits, and Applications:
Stainless Steel Enclosure (SS): Offers exceptional corrosion resistance, making the motor suitable for use in harsh or washdown environments such as food processing, dairy plants, and chemical facilities.
Total Enclosed Fan Cooled (TEFC) Design: Prevents the ingress of contaminants such as dust, water, and chemicals, enhancing motor longevity and reliability in tough industrial settings.
Motor Frame Size 90L-4: Standard IEC frame ensures compatibility with a wide range of gearboxes, applications, and mounting configurations, simplifying integration.
Power Output 1.50kW at 1400RPM: Provides reliable and efficient power for continuous-duty operations involving conveyors, mixers, pumps, and packaging systems.
Voltage Rating 230/400V, 50Hz: Dual-voltage capability ensures flexibility in both European and global installations, compliant with international electrical standards.
IP66 Protection Rating: Offers complete protection against dust and high-pressure water jets, ideal for sanitary washdown zones or outdoor exposure.
Shaft and Components in Stainless Steel (SS Hollow Shaft): Resists mechanical wear and chemical attack, critical for applications requiring frequent cleaning or corrosive exposure.
Wide Application Scope: Perfect for hygienic process areas and demanding industrial automation setups that involve frequent start/stop cycles under varying loads.This Marlin AC Motor combines engineering-grade materials with industrial-strength design, ensuring optimal performance and reliability across a multitude of mechanical and automation systems.
Stainless Steel Enclosure (SS): Offers exceptional corrosion resistance, making the motor suitable for use in harsh or washdown environments such as food processing, dairy plants, and chemical facilities.
Total Enclosed Fan Cooled (TEFC) Design: Prevents the ingress of contaminants such as dust, water, and chemicals, enhancing motor longevity and reliability in tough industrial settings.
Motor Frame Size 90L-4: Standard IEC frame ensures compatibility with a wide range of gearboxes, applications, and mounting configurations, simplifying integration.
Power Output 1.50kW at 1400RPM: Provides reliable and efficient power for continuous-duty operations involving conveyors, mixers, pumps, and packaging systems.
Voltage Rating 230/400V, 50Hz: Dual-voltage capability ensures flexibility in both European and global installations, compliant with international electrical standards.
IP66 Protection Rating: Offers complete protection against dust and high-pressure water jets, ideal for sanitary washdown zones or outdoor exposure.
Shaft and Components in Stainless Steel (SS Hollow Shaft): Resists mechanical wear and chemical attack, critical for applications requiring frequent cleaning or corrosive exposure.
Wide Application Scope: Perfect for hygienic process areas and demanding industrial automation setups that involve frequent start/stop cycles under varying loads.This Marlin AC Motor combines engineering-grade materials with industrial-strength design, ensuring optimal performance and reliability across a multitude of mechanical and automation systems.
