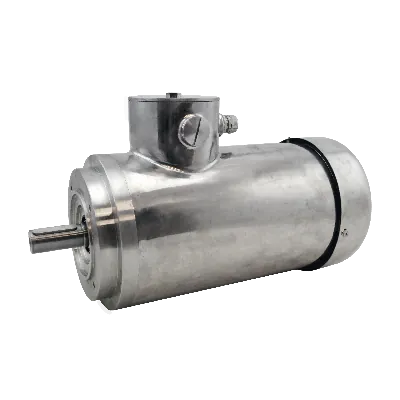

Marlin AC motor TEFC90L-6, 1.10kW, 900RPM, 230/400V, 50Hz, IP66, stainless steel
TEFC90L-6The Marlin TEFC90L-6 AC Motor is a robust, stainless steel motor rated at 1.10kW and 900RPM, suitable for 230/400V, 50Hz setups, and comes with an IP66 rating for durability and protection. Ideal for industrial needs requiring reliable and hygienic operations.
Specifications
Product description
Downloads
€1,308.00
Made to order
Expected shipment: 04-04-2025
More Information
IP classification
IP 66
Model
TEFC 90L-6
Speed (RPM)
900
Rated output (kW)
1.1
Efficiency (% FL)
82.7
Voltage connection (Δ/Y)
230/400
Rated current at voltage
4.56/2.63
Nominal torque (Nm)
11.06
Mounting
B14
IEC norm
90
BCD
115
Poles
6
Certifications
UL, cURus
Efficiency standard
IE2
Shaft diameter (mm)
Ø24
Cooling
TEFC
Thermal protection
PTC
Description
Key features:
- Clean-in-place (CIP) design ensures effortless cleaning, maintaining strict hygiene standards.
- IP66 rating provides total protection against dust and powerful jets of water, ensuring optimal performance in harsh conditions.
- Totally Enclosed Fan Cooled (TEFC) construction prevents contamination and damage from external elements, safeguarding the motor's integrity.
- Boasts a formidable power of 1.10kW and operates at 900RPM.
- Impressive IE2 energy efficiency ensures reduced energy consumption, promoting sustainability and cost savings.
Specifications:
- Material: Manufactured from EN 1.4301/AISI 304 and EN 1672-2.
- Certification: cURus certified and UL approved, adhering to stringent safety and quality standards.
Downloads
Kaiser Motoren stainless steel motors operating instructions
Kaiser Motoren stainless steel motors operating instructions.pdf
Download file
