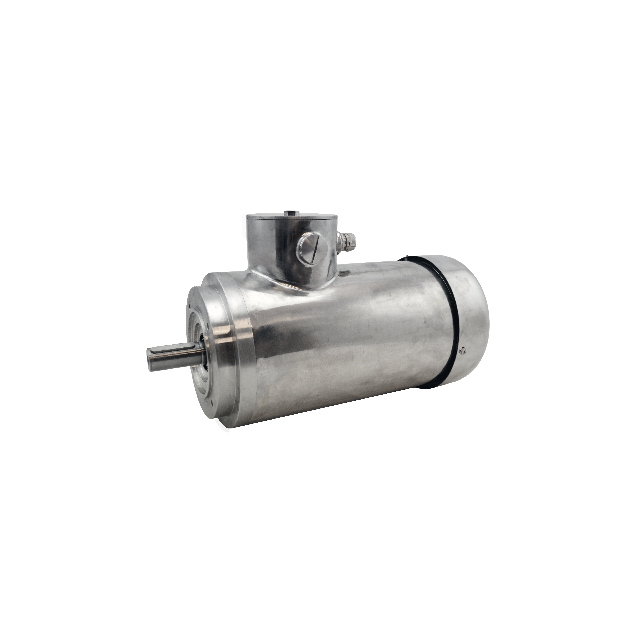

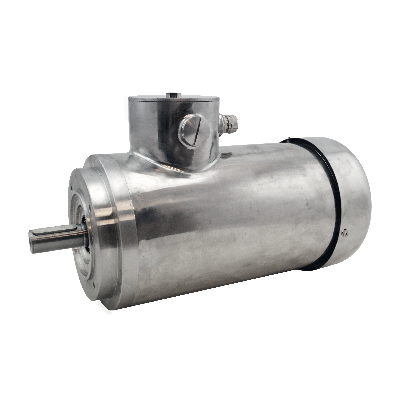

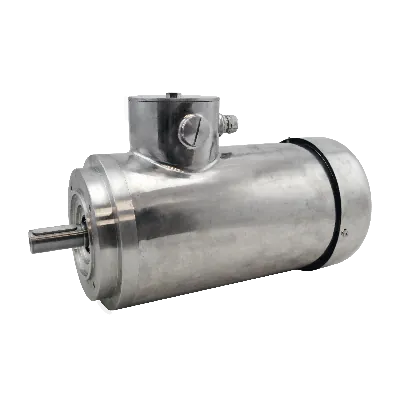

Marlin AC motor TEFC80B-2, 1.10kW, 2800RPM, 230/400V, 50Hz, IP66, stainless steel

TEFC80B-2

The Marlin AC motor TEFC80B-2 is a stainless steel IEC motor designed for demanding industrial and hygienic environments. With a rated output of 1.10 kW, a torque of 3.64 Nm, and a speed of 2800 RPM (2-pole), it provides powerful, reliable, and energy-efficient performance.

Manufactured from EN 1.4301/AISI 304 stainless steel and compliant with EN 1672-2 hygienic design standards, this motor is corrosion-resistant and suitable for Clean-in-Place (CIP) processes. Its IP66 protection ensures complete resistance to dust and high-pressure water jets, making it ideal for industries with strict hygiene requirements such as food, beverage, and pharmaceuticals.

The Totally Enclosed Fan-Cooled (TEFC) cooling system prevents ingress of dust, moisture, and other contaminants, extending service life. With B14 flange mounting, UL and cURus certifications, and an IE3 efficiency class, the TEFC80B-2 motor combines hygiene, safety, and energy efficiency in a compact design.

Specifications

Product description

Downloads

Excluded taxes and delivery costs

Made to order

Expected shipment:

More Information

IP classification

IP 66

Model

TEFC 80B-2

Speed (RPM)

2800

Rated output (kW)

1.1

Efficiency (% FL)

85.2

Voltage connection (Δ/Y)

230/400

Rated current at voltage

3.60/2.08

Nominal torque (Nm)

3.64

Start current ratio (IA/IN)

Mounting

B14

BCD

100

Poles

Certifications

UL, cURus

Efficiency standard

IE3

Shaft diameter (mm)

Ø19

Cooling

TEFC

HS-Code

85015220.000000

Description

Key features:

Clean-in-Place (CIP): The motor's design facilitates effortless cleaning.
IP66 rating: With an IP66 protection level, the motor is safeguarded against dust ingress and jets of water.
Totally Enclosed Fan-Cooled (TEFC): The TEFC design prevents contaminants from entering the motor.
High power output: Boasting a robust 1.1kW capacity, the motor can handle heavy workloads with ease.
High-speed operation: With a reliable 2800RPM speed, the motor enables swift and efficient performance.
B14 flange: The B14 flange design ensures a secure and easy mounting process.
IE4 efficiency: The motor is rated IE4, demonstrating remarkable energy efficiency.

Specifications:

Material: Constructed from EN 1.4301/AISI 304 and EN 1672-2.
Certification: Backed by cURus certification and UL approval.

Downloads

TEFC 80 2B IMB14 FT100 1,1KW TEFC 80 2B IMB14 FT100 1,1KW.stp Download file

Brochure: Stainless steel motor Brochure: Stainless steel motor.pdf Download file

Kaisermotoreninstallation Kaisermotoreninstallation.pdf Download file
